Spring Boot Upload Image Example (2024)

In this tutorial, we'll show you how to upload image in Spring Boot application with following rest endpoints.

1. POST method to Upload image using MultipartFile[] file as a parameter.
2. GET/image/info method with image name, provide image information.
3. GET/image method with image name, can view image.

Create Spring Boot Project from Spring Initializer site https://start.spring.io/

Project Structure

Maven Dependency

All we need is spring-boot-starter-web for RestController, mysql-connector-java for database dependencies in pom.xml, add org.projectlombok for auto generating getters/setters/constructor.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.techgeeknext</groupId>
	<artifactId>spring-boot-upload-image</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>spring-boot-upload-image</name>
	<description>Spring Boot Upload Image</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.3.1.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
		</dependency>

		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>

	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

Database Connection Details

Provide database details in application.properties.

spring.datasource.url=jdbc:mysql://localhost/imagesdb?createDatabaseIfNotExist=true&autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
spring.datasource.username=root
spring.datasource.password=root
spring.datasource.platform=mysql
spring.datasource.initialization-mode=always
spring.jpa.hibernate.ddl-auto=update
spring.jackson.serialization.fail-on-empty-beans=false

RestController to upload image

Create RestController class and define below rest endpoint:

1. POST method to Upload image using MultipartFile[] file as a parameter.
2. GET/image/info method with image name, provide image information.
3. GET/image method with image name, can view image.

package com.techgeeknext.controller;

import com.techgeeknext.entities.Image;
import com.techgeeknext.repositories.ImageRepository;
import com.techgeeknext.util.ImageUtility;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;

import java.io.IOException;
import java.util.Optional;

@RestController
//@CrossOrigin(origins = "http://localhost:8082") open for specific port
@CrossOrigin() // open for all ports
public class ImageController {

    @Autowired
    ImageRepository imageRepository;

    @PostMapping("/upload/image")
    public ResponseEntity<ImageUploadResponse> uplaodImage(@RequestParam("image") MultipartFile file)
            throws IOException {

        imageRepository.save(Image.builder()
                .name(file.getOriginalFilename())
                .type(file.getContentType())
                .image(ImageUtility.compressImage(file.getBytes())).build());
        return ResponseEntity.status(HttpStatus.OK)
                .body(new ImageUploadResponse("Image uploaded successfully: " +
                        file.getOriginalFilename()));
    }

    @GetMapping(path = {"/get/image/info/{name}"})
    public Image getImageDetails(@PathVariable("name") String name) throws IOException {

        final Optional<Image> dbImage = imageRepository.findByName(name);

        return Image.builder()
                .name(dbImage.get().getName())
                .type(dbImage.get().getType())
                .image(ImageUtility.decompressImage(dbImage.get().getImage())).build();
    }

    @GetMapping(path = {"/get/image/{name}"})
    public ResponseEntity<byte[]> getImage(@PathVariable("name") String name) throws IOException {

        final Optional<Image> dbImage = imageRepository.findByName(name);

        return ResponseEntity
                .ok()
                .contentType(MediaType.valueOf(dbImage.get().getType()))
                .body(ImageUtility.decompressImage(dbImage.get().getImage()));
    }
}

Image Entity

Create the Image entity class to store the image data in database.

package com.techgeeknext.entities;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.*;

@Entity
@Table(name = "image")
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class Image {
	@Id
	@Column(name = "id")
	@GeneratedValue(strategy = GenerationType.IDENTITY)
	private Long id;

	@Column(name = "name")
	private String name;

	@Column(name = "type")
	private String type;

	@Column(name = "image", unique = false, nullable = false, length = 100000)
	private byte[] image;
}

Test Upload Image Example

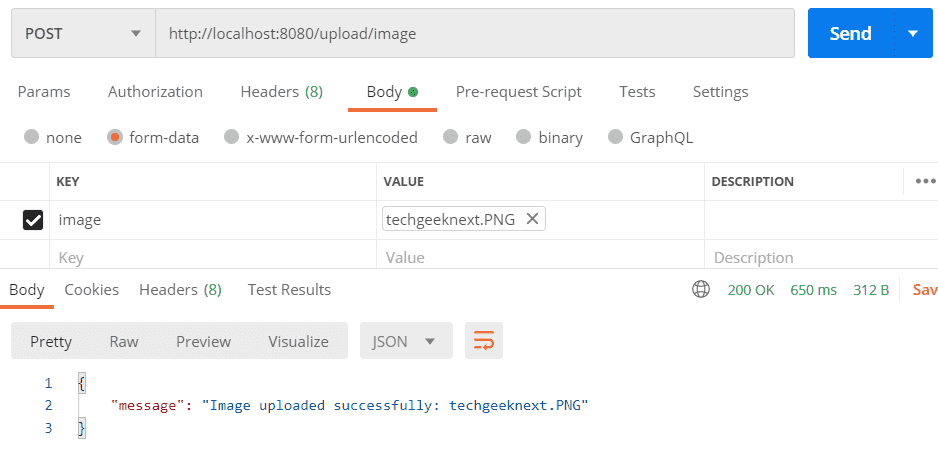

1. POST - Upload Image

   Open POSTMAN and select the value to upload the image by using http://localhost:8080/upload/image request.

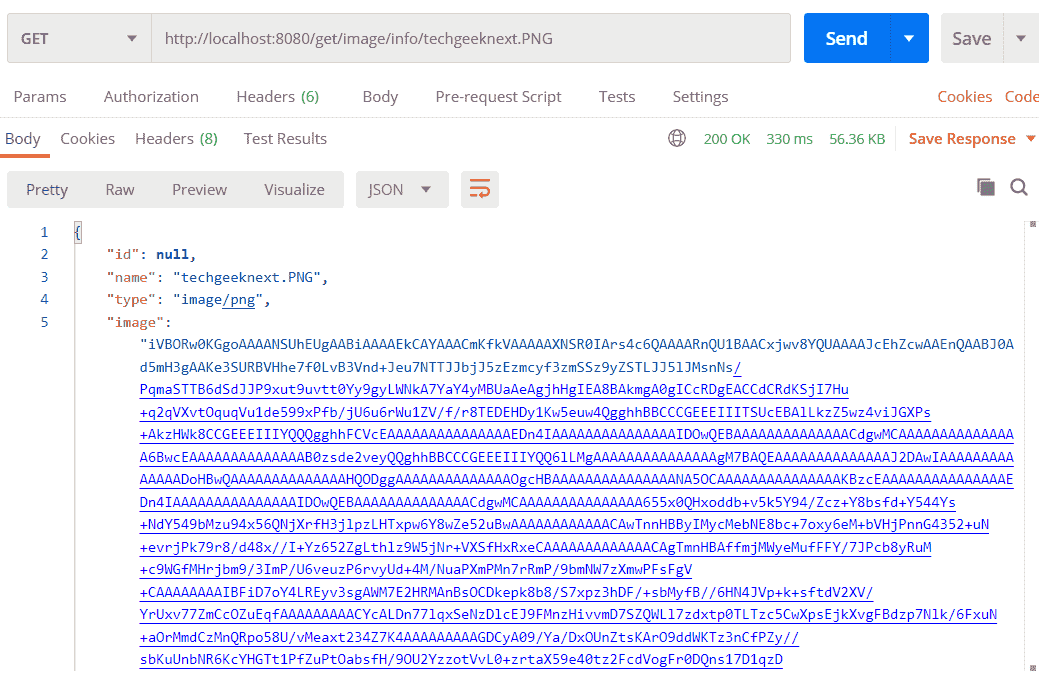

2. GET - INFO of uploaded image

   Open POSTMAN and get the info of uploaded image by using http://localhost:8080/get/image/info/techgeeknext.PNG request.

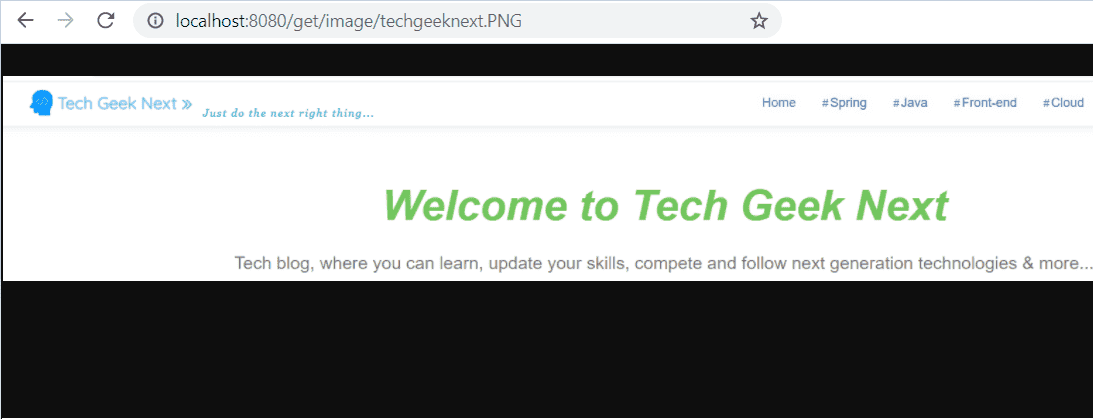

3. GET - VIEW uploaded image

   Open POSTMAN and View uploaded image by using http://localhost:8080/get/image/techgeeknext.PNG request.

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot Upload Image Example
