PCF Spring Boot RabbitMQ Example

As seen in previous tutorial, we learned how to develop and deploy Spring Boot application to PCF and deploy Spring Boot + MYSQL to PCF.
Now lets move ahead and learn step by step how to develop and deploy Spring Boot with Local RabbitMQ and also with Pivotal Cloud Foundry (PCF) RabbitMQ service.
To test this application at local will use Local RabbitMQ, however to test with Pivotal Cloud Foundry, will see how to create RabbitMQ service and bind.

RabbitMQ Tutorial :

Install RabbitMQ on Windows
Install RabbitMQ using Docker on Windows
Spring Boot RabbitMQ Example
Spring Boot + RabbitMQ + Error Handling Example
Spring Cloud Stream + RabbitMQ Example
Spring Boot + Pivotal Cloud Foundry (PCF) + RabbitMQ Example
RabbitMQ Interview Questions

Note : The full source code for PCF spring boot rabbitMQ example can be downloaded at the end of this article.

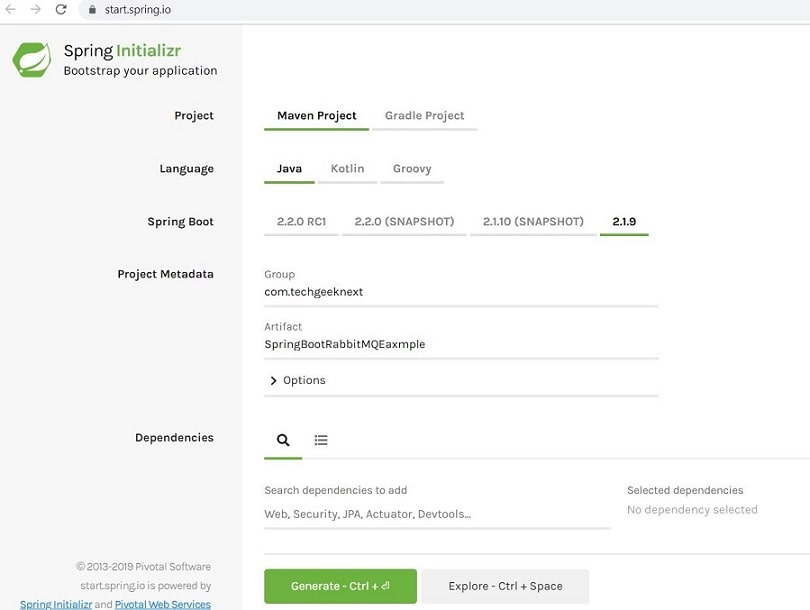

To begin with, first Create Spring Boot Project from Spring Initializer site https://start.spring.io/.

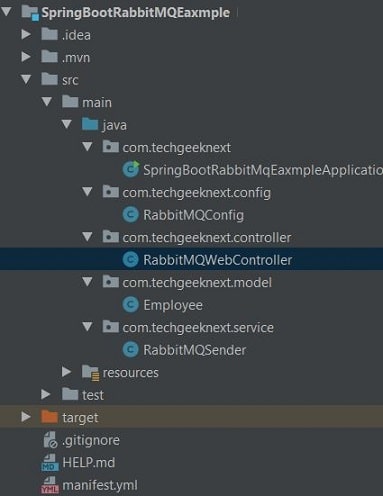

Project will look as given below

Add RabbitMq dependency in pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.8.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.techgeeknext</groupId>
	<artifactId>SpringBootRabbitMQEaxmple</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>SpringBootRabbitMQEaxmple</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-amqp</artifactId>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-cloud-connectors -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-cloud-connectors</artifactId>
			<version>1.3.2.RELEASE</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Provide rabbitmq properties in application.properties

spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest
techgeeknext.rabbitmq.exchange=techgeeknext.exchange
techgeeknext.rabbitmq.queue=techgeeknext.queue
techgeeknext.rabbitmq.routingkey=techgeeknext.routingkey

Create manifest.yml, you can see we have provided service name as techgeeknextRabbitmqservice, which is RabbitMQ service name created in PCF.
Note: This manifest.yml file only be needed in case to deploy and test on Pivotal Cloud Foundry. To test at Local, we don't need this file. You can setup RabbitMQ at Local to test this Example.

name: techgeeknext-springBootRabbitMq
path: target\SpringBootRabbitMQEaxmple-0.0.1-SNAPSHOT.jar
memory: 1G
services:
  - techgeeknextRabbitmqservice

Let's create Employee Model class

package com.techgeeknext.model;
import com.fasterxml.jackson.annotation.JsonIdentityInfo;
import com.fasterxml.jackson.annotation.ObjectIdGenerators;

@JsonIdentityInfo(generator = ObjectIdGenerators.IntSequenceGenerator.class, property = "@id", scope = Employee.class)
public class Employee {
	private String empName;
	private String empId;
	public String getEmpName() {
		return empName;
	}

	public void setEmpName(String empName) {
		this.empName = empName;
	}

	public String getEmpId() {
		return empId;
	}

	public void setEmpId(String empId) {
		this.empId = empId;
	}

	@Override
	public String toString() {
		return "Employee [empName=" + empName + ", empId=" + empId + "]";
	}
}

Create Configuration class to connect to RabbitMQ.

package com.techgeeknext.config;

import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.amqp.support.converter.MessageConverter;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class RabbitMQConfig {

	@Value("${techgeeknext.rabbitmq.queue}")
	String queueName;

	@Value("${techgeeknext.rabbitmq.exchange}")
	String exchange;

	@Value("${techgeeknext.rabbitmq.routingkey}")
	private String routingkey;

	@Bean
	Queue queue() {
		return new Queue(queueName, false);
	}

	@Bean
	DirectExchange exchange() {
		return new DirectExchange(exchange);
	}

	@Bean
	Binding binding(Queue queue, DirectExchange exchange) {
		return BindingBuilder.bind(queue).to(exchange).with(routingkey);
	}

	@Bean
	public MessageConverter jsonMessageConverter() {
		return new Jackson2JsonMessageConverter();
	}

	public AmqpTemplate rabbitTemplate(ConnectionFactory connectionFactory) {
		final RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
		rabbitTemplate.setMessageConverter(jsonMessageConverter());
		return rabbitTemplate;
	}
}

Create controller class to expose the endpoint to send message to RabbitMQ.

package com.techgeeknext.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import com.techgeeknext.model.Employee;
import com.techgeeknext.service.RabbitMQSender;

@RestController
@RequestMapping(value = "/techgeeknext")
public class RabbitMQWebController {

	@Autowired
	private RabbitMQSender rabbitMQSender;

	@GetMapping(value = "/rabbitmq/receive/message")
	public String consume(@RequestParam("empName") String empName,@RequestParam("empId") String empId) {

	Employee emp=new Employee();
	emp.setEmpId(empId);
	emp.setEmpName(empName);
		rabbitMQSender.send(emp);

		return "Message has been sent to the RabbitMQ techgeeknext successfully";
	}

}

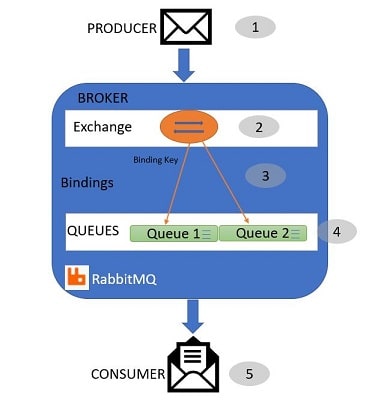

Create Message Producer/Sender, which send messages to RabbitMQ Consumer using Direct Exchange as shown below.

package com.techgeeknext.service;

import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;

import com.techgeeknext.model.Employee;

@Service
public class RabbitMQSender {

	@Autowired
	private AmqpTemplate amqpTemplate;

	@Value("${techgeeknext.rabbitmq.exchange}")
	private String exchange;

	@Value("${techgeeknext.rabbitmq.routingkey}")
	private String routingkey;

	public void send(Employee empName) {
		amqpTemplate.convertAndSend(exchange, routingkey, empName);
		System.out.println("Send msg = " + empName);
	}
}

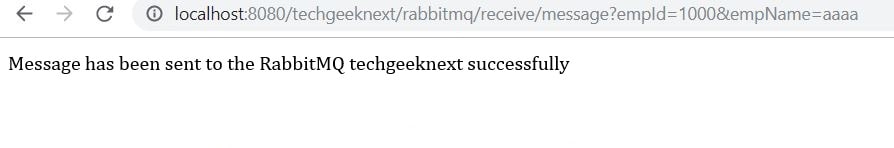

Now, test this application at local. Start local RabbitMQ and Run Spring Boot App

Create RabbitMQ service from Pivotal Cloud Foundry

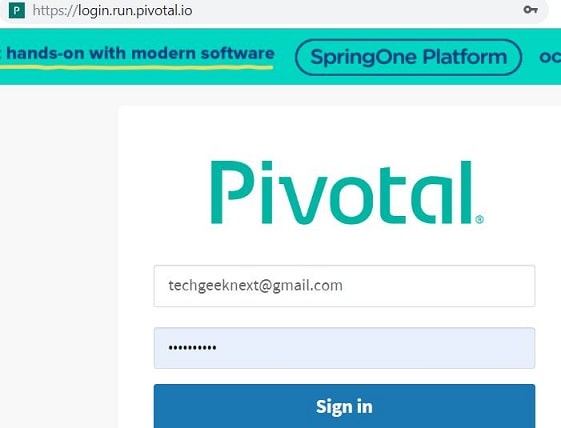

- Loging to Pivotal Cloud Foundry

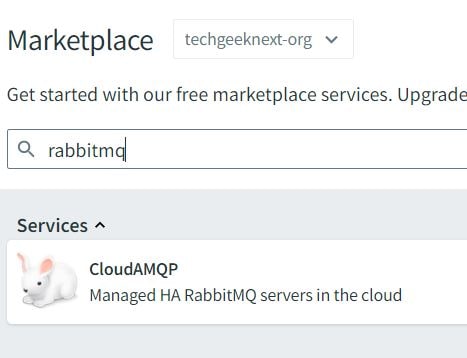

- Click on Marketplace.earch for RabbitMQ, click on CloudAMQP

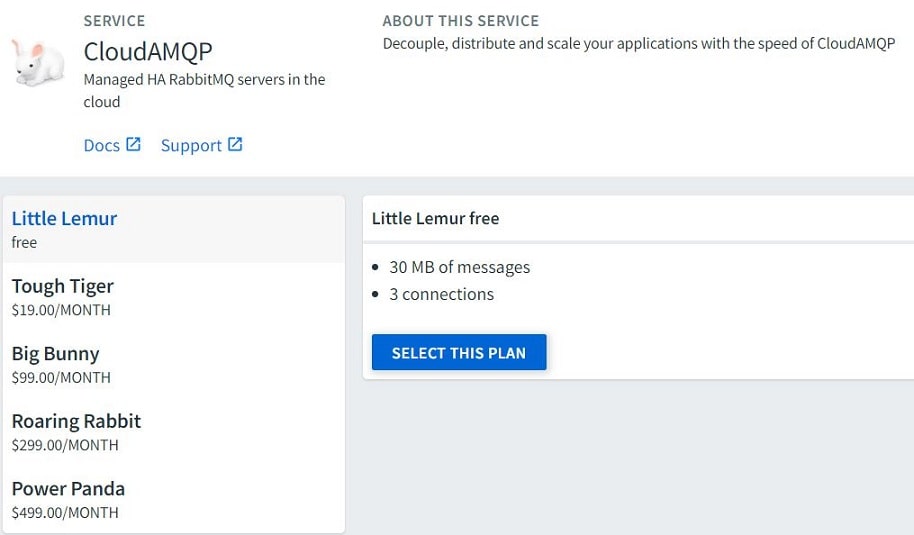

- Click on Select This Plan button
- Give service name, same as provided in manifest.yml file and click on Create button

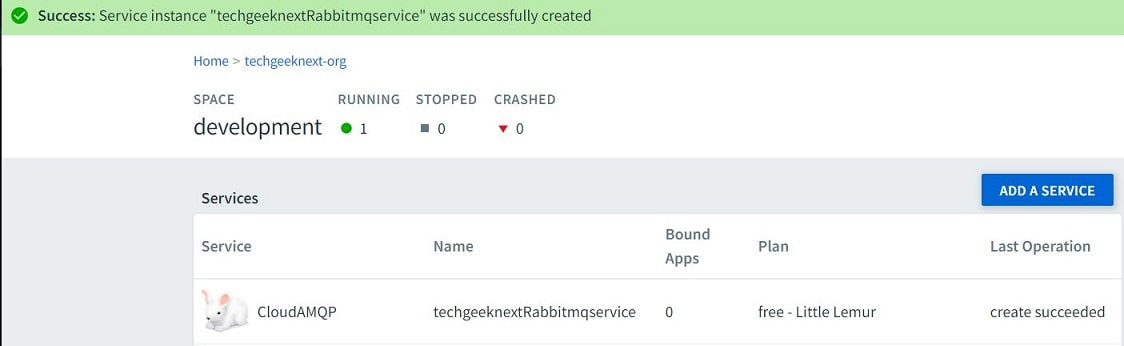

- Finally, it will create the RabbitMQ service as shown below
Deploy your application by using cf push from path where manifest.yml resides

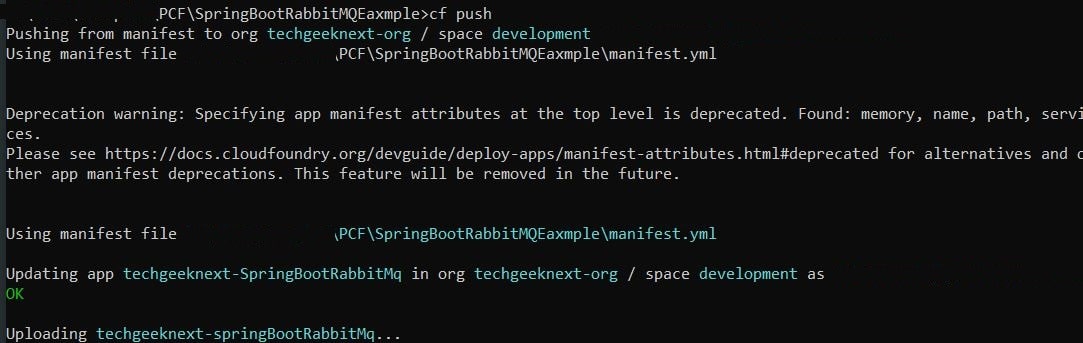

Login to Cloud Foundry from command prompt using cf login -a api.run.pivotal.io command, and provide login credentials. Once login, push your application by using cf push command.

Once deployment process get complete, go to Pivotal Cloud Foundry Web.

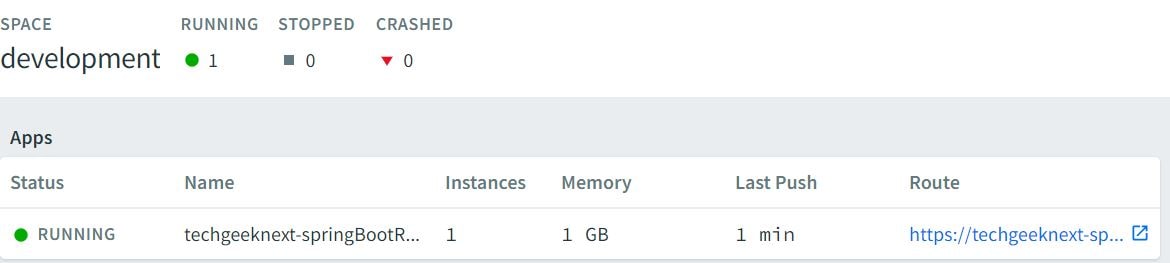

Click on Organization-> Development, you can see your Spring Boot App deployed to PCF.

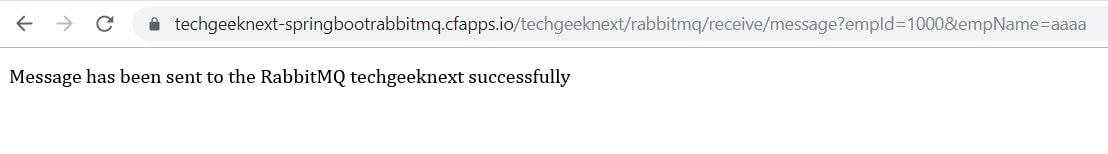

To test the application, click on route and as given below append the required attribute to call controller services.

Download Source Code

The full source code for this article can be found on below.
Download it here - PCF Spring Boot RabbitMQ Example
