Spring Boot + OAuth 2 Password Grant Type

In previous article, we learned about OAuth 2 with Google Authorization Server. In this tutorial, will learn how to customize and create our Authorization Server with Password Grant Type.

OAuth (Open Authorization) is an open standard on the Internet for token-based authentication and authorization. OAuth, allows third-party services, such as Facebook, to use account information from an end-user without exposing the user's password.

In OAuth2, grant type is how an application gets the access token. Below are the grant types according to OAuth2 specification:

1. Authorization code grant
2. Implicit grant
3. Resource owner Password Credentials grant
4. Client Credentials grant
5. Refresh token grant

In this tutorial, will see Resource owner Password Credentials grant type.

What is Password Grant Type?

The Password grant type is a way to exchange a user's username and password for an access token. Since the client application has to collect the user's password and send it to the authorization server.

Password Grant Type Flow

The flow shown in above Figure includes the following steps:

1. The resource owner provides the client application with it's username and password.
2. The Client Application requests an access token from the Authorization Server by passing credentials received from the resource owner.
3. The Authorization Server authenticates the client by validating the resource owner credentials. Once Validation is successful and if request is valid, it sends an access token.
4. Client sends the received access token to Resource Server to access the resource end point.
5. Resource Server validates the access token by calling Authorization Server.
6. If the token is valid, resource server return the requested resource to Client.

Now, let's explore the example of Password Grant Type.

Maven Dependencies

Add spring-cloud-starter-oauth2 and spring-boot-starter-oauth2-resource-server

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.3.4.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.techgeeknext</groupId>
	<artifactId>authorization-server</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>authorization-server</name>
	<description>Password Authorization Grant Type</description>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Hoxton.SR8</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-oauth2-resource-server</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-oauth2</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

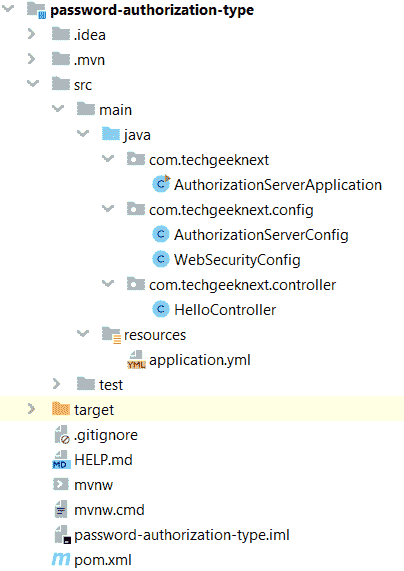

Project Structure

Authorization Server

Now, let's create and configure Authorization Server by annotating the class with @EnableAuthorizationServer
Authorization Server exposes endpoints for requesting access token (/oauth/token), checking the access token (/oauth/check_token), authorizing the client, etc

package com.techgeeknext.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;

@Configuration
@EnableAuthorizationServer
public class AuthorizationServerConfig extends AuthorizationServerConfigurerAdapter
{
	@Override
    public void configure(AuthorizationServerSecurityConfigurer oauthServer) throws Exception {
		oauthServer.tokenKeyAccess("isAuthenticated()")
        	 .checkTokenAccess("isAuthenticated()")  ;
    }

	@Override
	public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
		clients.inMemory()
				.withClient("techgeeknextClient")
				.authorizedGrantTypes("password")
				.secret(encoder().encode("pass123"))
				.scopes("user_info","read","write")
				.redirectUris("http://localhost:8083/techgeeknext/login/oauth2/code/techgeeknextclient")
				.autoApprove(false);
	}

	@Autowired
	private AuthenticationManager authenticationManager;

	@Override
	public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
		endpoints.authenticationManager(authenticationManager);
	}

	@Bean
    public BCryptPasswordEncoder encoder() {
        return new BCryptPasswordEncoder();
    }
}

Resource Server

Define the Spring Boot Main Application. Configure the Resource Server using @EnableResourceServer annotation. It means the service expects an access token in order to process the request.

package com.techgeeknext;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;

@EnableResourceServer
@SpringBootApplication
public class AuthorizationServerApplication {
    public static void main(String[] args) {
    	SpringApplication.run(AuthorizationServerApplication.class, args);
    }
}

Now create a resource that client wants to access.

package com.techgeeknext.controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class HelloController {

    @GetMapping("/hello")
    public String sayHello(Model model, @RequestParam(defaultValue = "TechGeekUser" ,required = false)String name) {
        model.addAttribute("name", name);
        return "Hello "+name;
    }
}

Spring Security Configuration

Spring Security Configuration, enables users to easily configure Spring Security. Configure in-memory, user as techgeeknextUser with password testPass

package com.techgeeknext.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.annotation.Order;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.factory.PasswordEncoderFactories;
import org.springframework.security.crypto.password.DelegatingPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableOAuth2Client;

import javax.sql.DataSource;

@Configuration
@Order(1)
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

    protected void configure(HttpSecurity http) throws Exception {
        http
                .authorizeRequests()
                .antMatchers("/login").permitAll()
                .antMatchers("/oauth/authorize")
                .authenticated()
                .and().formLogin()
                .and().requestMatchers()
                .antMatchers("/login","/oauth/authorize");
    }

    @Autowired
    private PasswordEncoder passwordEncoder;

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication()
                .withUser("techgeeknextUser").password(passwordEncoder.encode("testPass"))
                .roles("USER");
    }

    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }
}

Configure port and context path

logging:
  level:
    org.springframework.security: DEBUG

server:
  port: 8083
  servlet:
    context-path: /techgeeknext
    session:
      cookie:
        path: /techgeeknext

Testing Password Grant Type

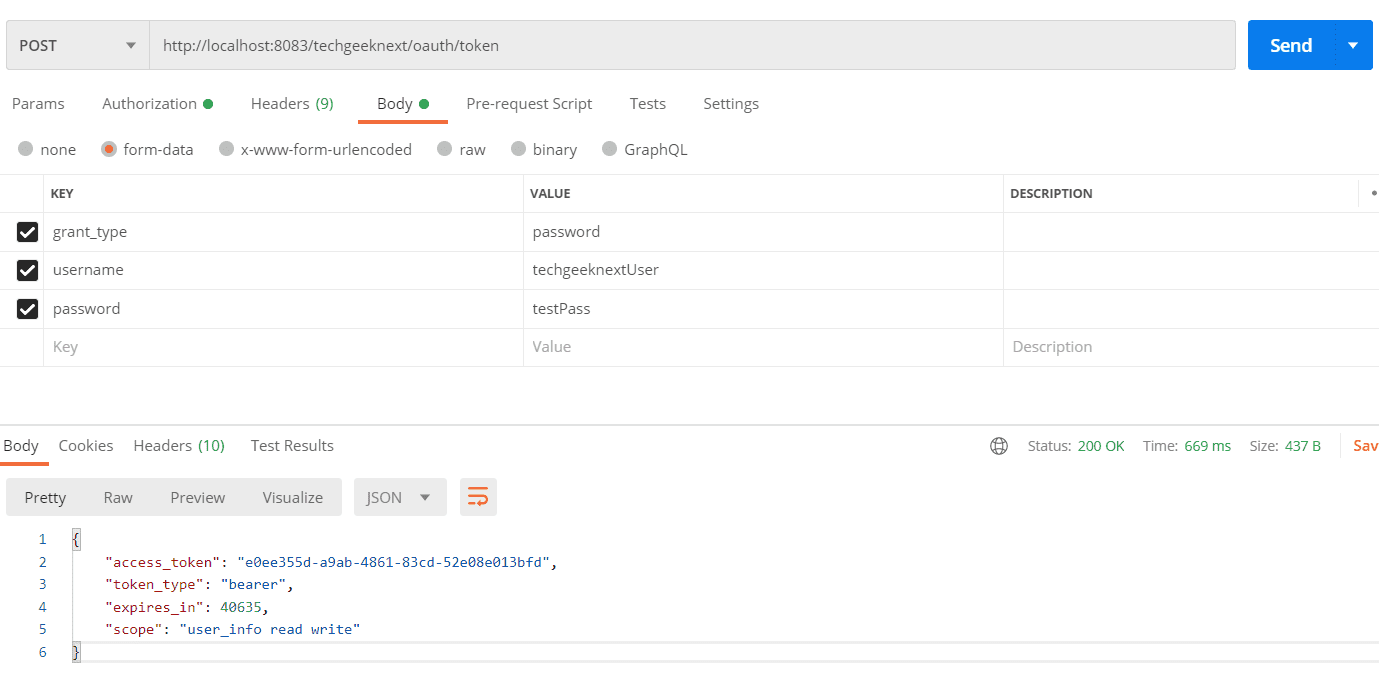

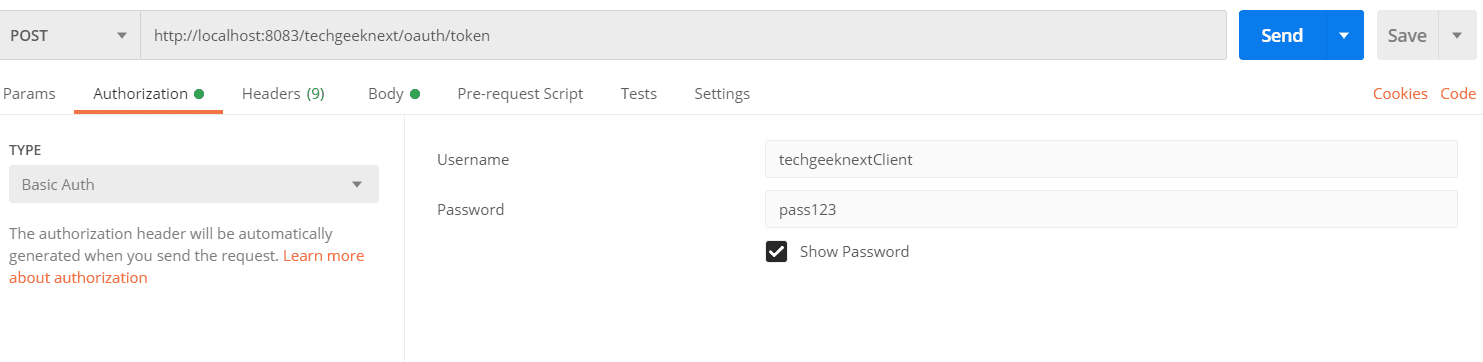

1. Get the access token by making a POST request to http://localhost:8083/techgeeknext/oauth/token , provide the client_id and client_secret in the Basic Auth header.

2. Provide grant_type, username and password as specified in the WebSecurityConfig class.

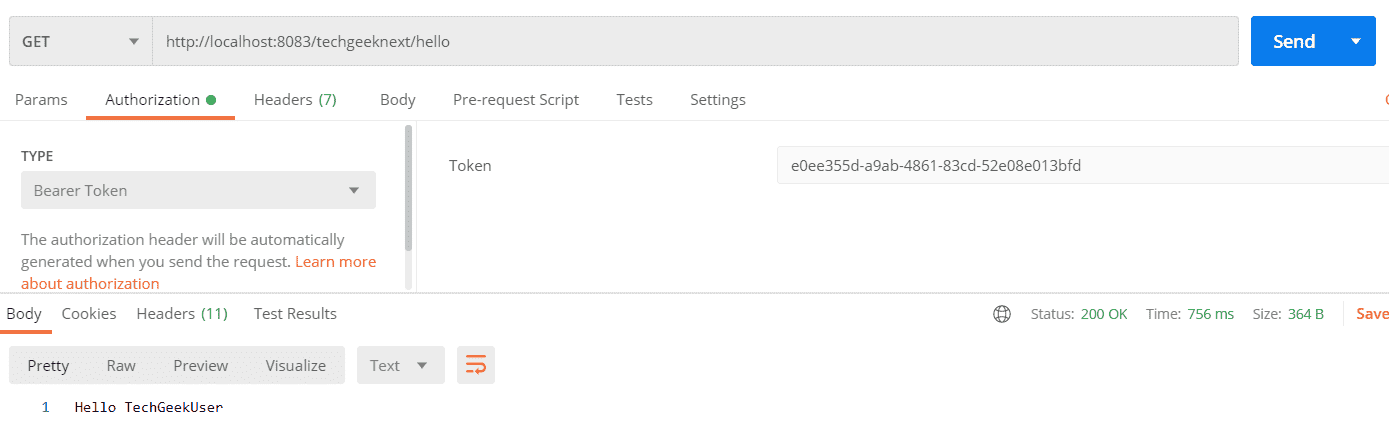

3. Now, to access the resource end point, pass the above access token in Authorization Bearer.

Download Source Code

The full source code for this article can be found on below.
Download it here - OAuth 2 Password Grant Type
