Spring Boot Apache Kafka Example

Overview

In this article, we'll explore how to integrate Apache Kafka with Spring Boot.

1. Overview of Apache Kafka
2. Install Kafka
3. spring boot kafka project

Overview of Apache Kafka

Apache Kafka is A high-throughput distributed streaming platform. It's a publish-subscribe messaging rethought as a distributed commit log

A streaming platform has three key capabilities:

1. Publish and subscribe to streams of records, similar to a message queue or enterprise messaging system
2. Store streams of records in a fault-tolerant durable way
3. Process streams of records as they occur.

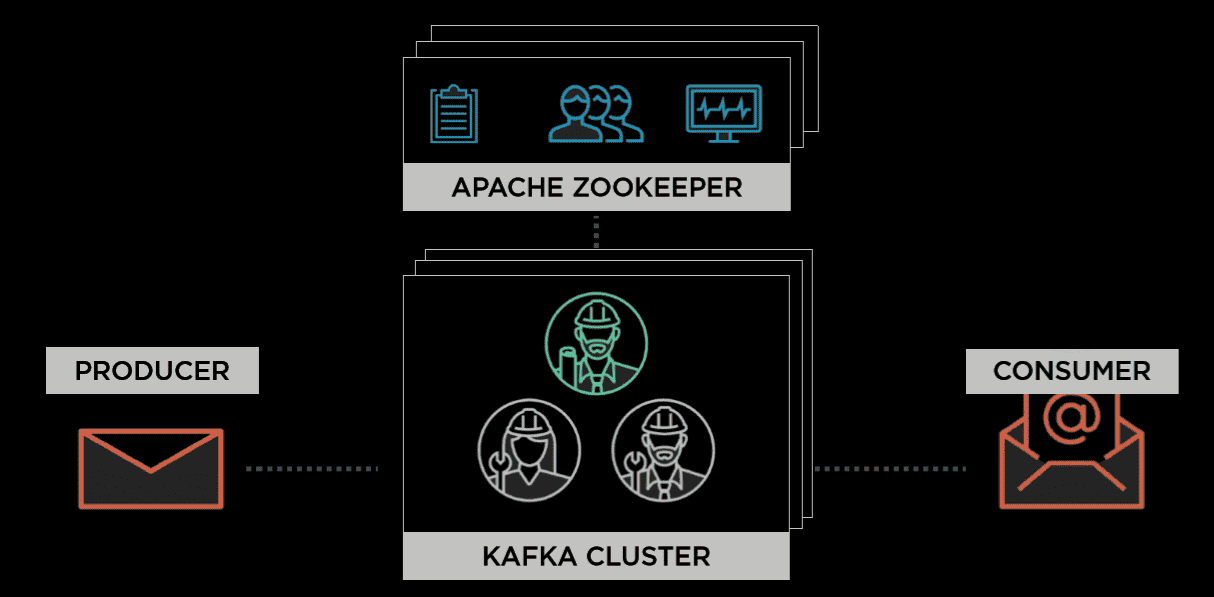

Here is Apache Kafka's Distributed Architecture : Kafka is generally used for two broad classes of applications:

1. Building real-time streaming data pipelines that reliably get data between systems or applications
2. Building real-time streaming applications that transform or react to the streams of data

Create Spring Boot Kafka Example

Let's get started on the project now.

Project Structure

Kafka Server Port

Define kafka server port in application.properties as given below.

techgeeknext.kafka.bootstrap-servers: localhost:9092


1. Create Spring Boot Maven project
2. Define the pom.xml as follows- Add the spring-kafka dependency.

   <?xml version="1.0" encoding="UTF-8"?>
   <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
   	<modelVersion>4.0.0</modelVersion>
   	<parent>
   		<groupId>org.springframework.boot</groupId>
   		<artifactId>spring-boot-starter-parent</artifactId>
   		<version>2.3.9.RELEASE</version>
   		<relativePath/> <!-- lookup parent from repository -->
   	</parent>
   	<groupId>com.techgeeknext</groupId>
   	<artifactId>kafaExample</artifactId>
   	<version>0.0.1-SNAPSHOT</version>
   	<name>kafaExample</name>
   	<description>Spring Boot Kafka</description>
   	<properties>
   		<java.version>1.8</java.version>
   	</properties>
   	<dependencies>
   		<dependency>
   			<groupId>org.springframework.boot</groupId>
   			<artifactId>spring-boot-starter</artifactId>
   		</dependency>

   		<dependency>
   			<groupId>org.springframework.boot</groupId>
   			<artifactId>spring-boot-starter-web</artifactId>
   		</dependency>

   		<dependency>
   			<groupId>org.springframework.kafka</groupId>
   			<artifactId>spring-kafka</artifactId>
   		</dependency>

   	</dependencies>

   	<build>
   		<plugins>
   			<plugin>
   				<groupId>org.springframework.boot</groupId>
   				<artifactId>spring-boot-maven-plugin</artifactId>
   			</plugin>
   		</plugins>
   	</build>

   </project>


Messages Producer

3. Define the Configuration Class to produce the messages.

   package com.techgeeknext.config;
   import java.util.HashMap;
   import java.util.Map;

   import org.apache.kafka.clients.producer.ProducerConfig;
   import org.apache.kafka.common.serialization.StringSerializer;
   import org.springframework.beans.factory.annotation.Value;
   import org.springframework.context.annotation.Bean;
   import org.springframework.context.annotation.Configuration;
   import org.springframework.kafka.core.DefaultKafkaProducerFactory;
   import org.springframework.kafka.core.KafkaTemplate;
   import org.springframework.kafka.core.ProducerFactory;

   @Configuration
   public class KafkaProducerConfig {
       @Value("${techgeeknext.kafka.bootstrap-servers}")
       private String bootstrapServers;

       @Bean
       public ProducerFactory<String, String> producerFactory() {
           Map<String, Object> configProps = new HashMap<>();
           configProps.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);
           configProps.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class);
           configProps.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, StringSerializer.class);
           return new DefaultKafkaProducerFactory<>(configProps);
       }
       @Bean
       public KafkaTemplate<String, String> kafkaTemplate() {
           return new KafkaTemplate<>(producerFactory());
       }
   }

   In the above example, ProducerFactory is responsible for creating Kafka Producer instances. In producerConfigs(), we configure below properties:
   1. BOOTSTRAP_SERVERS_CONFIG - Host and port on which Kafka is running.
   2. KEY_SERIALIZER_CLASS_CONFIG - Serializer class to be used for the key.
   3. VALUE_SERIALIZER_CLASS_CONFIG - Serializer class to be used for the value. We are using StringSerializer for both keys and values.
4. Define the Service class to auto wire the Kafka Template object to publish the message using techgeeknext-topic as shown.

   package com.techgeeknext.service;

   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.kafka.core.KafkaTemplate;
   import org.springframework.stereotype.Service;

   @Service
   public class KafkaProducerService {
       @Autowired
       private KafkaTemplate<String, String> kafkaTemplate;

       String kafkaTopic = "techgeeknext-topic";

       public void send(String message) {

           kafkaTemplate.send(kafkaTopic, message);
       }
   }


5. Now define controller class for publishing the message through kafka.

   package com.techgeeknext.controller;

   import com.techgeeknext.service.KafkaProducerService;
   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.kafka.annotation.KafkaListener;
   import org.springframework.web.bind.annotation.GetMapping;
   import org.springframework.web.bind.annotation.RequestMapping;
   import org.springframework.web.bind.annotation.RequestParam;
   import org.springframework.web.bind.annotation.RestController;

   @RestController
   @RequestMapping(value = "/techgeeknext-kafka/")
   public class KafkaExampleController {

       @Autowired
       KafkaProducerService kafkaProducer;


       @GetMapping(value = "/producer")
       public String sendMessage(@RequestParam("message") String message)
       {
           kafkaProducer.send(message);
           return "Message sent Successfully to the Kafka topic techgeeknext-topic";
       }

   }


Message Consumer

6. Define Consumer configuration class to consume messages.

   package com.techgeeknext.config;
   import java.util.HashMap;
   import java.util.Map;

   import org.apache.kafka.clients.consumer.ConsumerConfig;
   import org.apache.kafka.common.serialization.StringDeserializer;
   import org.springframework.beans.factory.annotation.Value;
   import org.springframework.context.annotation.Bean;
   import org.springframework.context.annotation.Configuration;
   import org.springframework.kafka.annotation.EnableKafka;
   import org.springframework.kafka.config.ConcurrentKafkaListenerContainerFactory;
   import org.springframework.kafka.core.ConsumerFactory;
   import org.springframework.kafka.core.DefaultKafkaConsumerFactory;

   @EnableKafka
   @Configuration
   public class KafkaConsumerConfig {

       @Value("${techgeeknext.kafka.bootstrap-servers}")
       private String bootstrapServers;

       @Bean
       public ConsumerFactory<String, String> consumerFactory() {
           Map<String, Object> props = new HashMap<>();
           props.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);
           props.put(ConsumerConfig.GROUP_ID_CONFIG, "group-id");
           props.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class);
           props.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class);
           return new DefaultKafkaConsumerFactory<>(props);
       }
       @Bean
       public ConcurrentKafkaListenerContainerFactory<String, String> kafkaListenerContainerFactory() {
           ConcurrentKafkaListenerContainerFactory<String, String>
                   factory = new ConcurrentKafkaListenerContainerFactory<>();
           factory.setConsumerFactory(consumerFactory());
           return factory;
       }
   }


7. Now, write a Listener method using @KafkaListener annotation to listen to the messages coming via techgeeknext-topic with group-id.

   package com.techgeeknext;

   import org.springframework.boot.SpringApplication;
   import org.springframework.boot.autoconfigure.SpringBootApplication;
   import org.springframework.kafka.annotation.KafkaListener;

   @SpringBootApplication
   public class KafaExampleApplication {

       public static void main(String[] args) {
           SpringApplication.run(KafaExampleApplication.class, args);
       }

       @KafkaListener(topics = "techgeeknext-topic", groupId = "group-id")
       public void listen(String message) {

           System.out.println("Received Messasge : " + message);
       }
   }


8. Next start the Spring Boot Application by running spring-boot:run.
9. Start zookeeper : This Kafka installation comes with a built-in zookeeper. Zookeeper is mainly used to track the status of the nodes present in the Kafka cluster and to keep track of Kafka topics, messages, etc.

   Refer Install Apache Kafka to know the steps to install Zookeeper and Kafka.

   .\bin\windows\zookeeper-server-start.bat .\config\zookeeper.properties

10. Start the Apache Kafka : Use below command to start the Apache Kafka

    .\bin\windows\kafka-server-start.bat .\config\server.properties

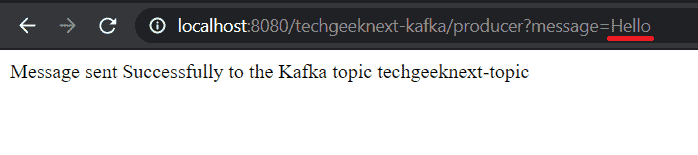

11. Finally, hit the url with Hello message as follows- http://localhost:8080/techgeeknext-kafka/producer?message=Hello

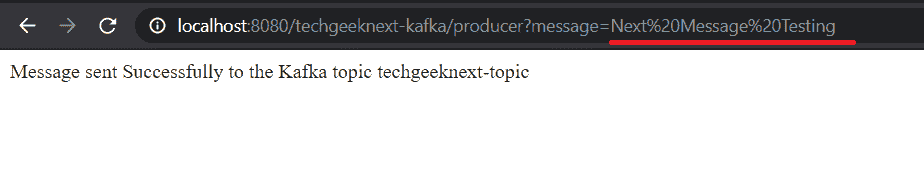

12. Then, hit the url with different message Next Message Testing as follows- http://localhost:8080/techgeeknext-kafka/producer?message=Next Message Testing
    Above 2 urls will trigger the message to be sent to the techgeeknext-topic with group-id.

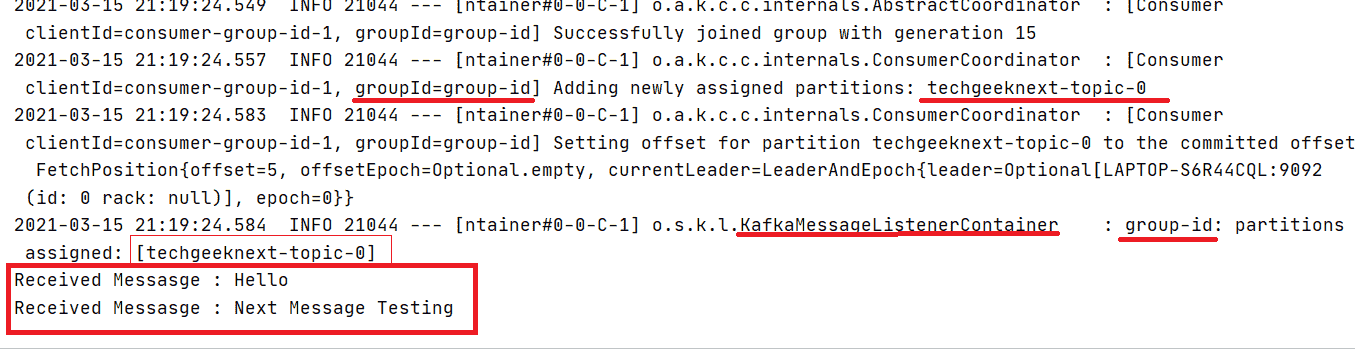

13. On the Spring Boot console, we can see consumer started and messages is received by the consumer.

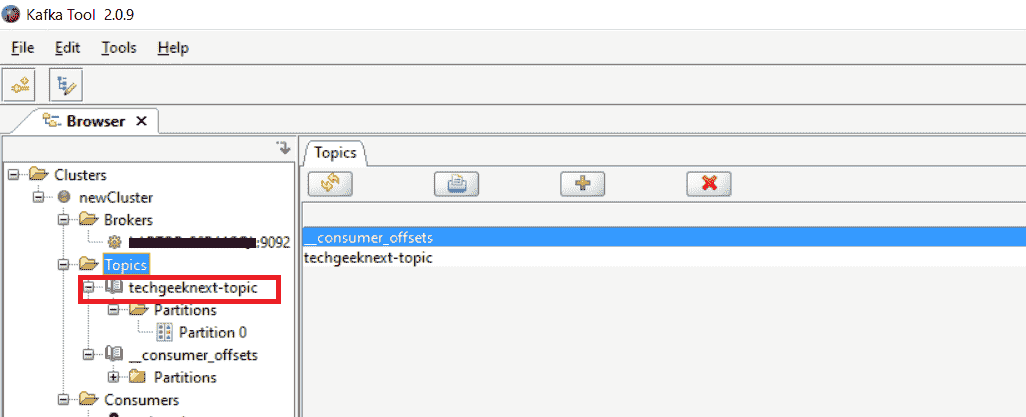

14. Also, you can verify that techgeeknext-topic with group-id has been created in Kafka Tool with other things like partition,consumer, producer etc.

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot Kafka Example
