Spring Boot Custom Validator

In previous example we have seen Spring Boot + Method Level Custom Annotation from here.

In this tutorial will demonstrate how to implement custom annotations at the Field and Class level (Spring Boot Custom Validator) in a Spring Boot application.

Spring Boot + Field and Class Level Custom Annotation Example

In this example, We will create Field Level and Class Level Custom Annotation (custom validator) and use it in our model to enforce the validation rules.

Now create Spring Boot application from Spring Initializr.

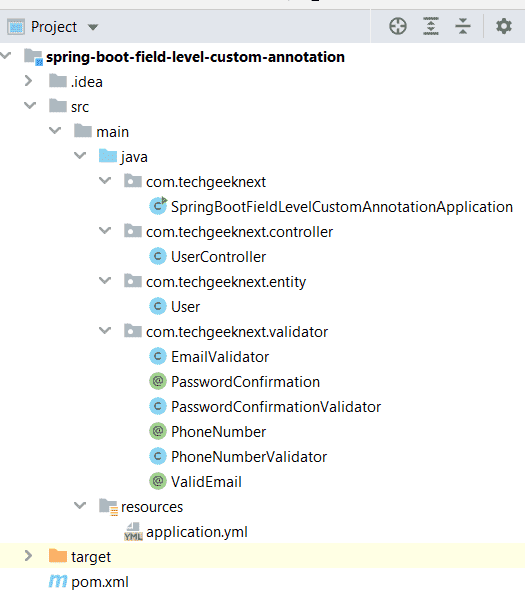

Project Structure

Maven Dependency

Add spring-boot-starter-web for RestController and for validation starter.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.4.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.techgeeknext</groupId>
    <artifactId>spring-boot-field-level-custom-annotation</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-boot-field-level-custom-annotation</name>
    <description>Spring Boot with Field Level Custom Validation Annotation
    </description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

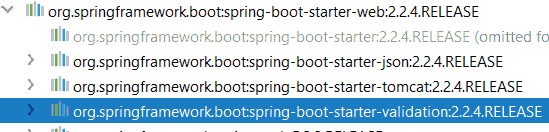

The validation starter comes with Spring Boot spring-boot-starter-web depnedency.

Create the annotation

Let us create the annotation in Java by using @interface.

We may define our class that will validate our field using the @Constraint annotation, the message() is the error message that will be displayed in the response using the message(), and the remaining code is the most repetitive code of spring standards using the rest code.

Email Validation

package com.techgeeknext.validator;

import javax.validation.Constraint;
import javax.validation.Payload;
import java.lang.annotation.*;

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target({ ElementType.FIELD, ElementType.ANNOTATION_TYPE, ElementType.TYPE_USE })
@Constraint(validatedBy = EmailValidator.class)
public @interface ValidEmail {
    String message() default "Invalid email";
    Class<?>[] groups() default {};

    Class<? extends Payload>[] payload() default {};
}

1. ValidEmail

   We have given our custom annotation name as ValidEmail.

2. @Target

   It specifies where the annotation should be applied. Because it is at the field level in our case, we pass ElementType.FIELD as a parameter.

3. @Retention

   It specifies when to use this annotation, which in our case is at run time.

Phone Number Validation

package com.techgeeknext.validator;

import javax.validation.Constraint;
import javax.validation.Payload;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Constraint(validatedBy = PhoneNumberValidator.class)
@Target({ElementType.FIELD, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
public @interface PhoneNumber {
    String message() default "Invalid phone number";
    Class<?>[] groups() default {};

    Class<? extends Payload>[] payload() default {};
}

Password Validation

package com.techgeeknext.validator;

import javax.validation.Constraint;
import javax.validation.Payload;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Constraint(validatedBy = PasswordConfirmationValidator.class)
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
public @interface PasswordConfirmation {
    String password();
    String confirmPassword();
    String message() default "Passwords must match!";

    Class<?>[] groups() default {};

    Class<? extends Payload>[] payload() default {};

    @Target({ ElementType.TYPE })
    @Retention(RetentionPolicy.RUNTIME)
    @interface List{
        PasswordConfirmation[] value();
    }
}

Create Validator

The validation class must implement the isValid function and implement the ConstraintValidator interface; it is in this method that we specified our validation criteria. ConstraintValidator is a class that defines the logic for validating a constraint for a specific object.

package com.techgeeknext.validator;

import javax.validation.ConstraintValidator;
import javax.validation.ConstraintValidatorContext;
import java.util.regex.Pattern;
public class EmailValidator implements ConstraintValidator<ValidEmail, String> {
    private String regex = "^[_A-Za-z0-9-\\+]+(\\.[_A-Za-z0-9-]+)*@"
            + "[A-Za-z0-9-]+(\\.[A-Za-z0-9]+)*(\\.[A-Za-z]{2,})$";

    @Override
    public boolean isValid(String email, ConstraintValidatorContext context) {
        if (email == null || email.isEmpty())
            return true;

        Pattern pat = Pattern.compile(regex);
        return pat.matcher(email).matches();
    }

}

Password Validator

Check whether user has provided same value for password and confirmation password object.

package com.techgeeknext.validator;

import org.springframework.beans.BeanWrapperImpl;

import javax.validation.ConstraintValidator;
import javax.validation.ConstraintValidatorContext;

public class PasswordConfirmationValidator implements ConstraintValidator<PasswordConfirmation, Object> {

    private String password;
    private String confirmPassword;

    @Override
    public void initialize(PasswordConfirmation constraintAnnotation) {
        this.password = constraintAnnotation.password();
        this.confirmPassword = constraintAnnotation.confirmPassword();
    }

    @Override
    public boolean isValid(Object value, ConstraintValidatorContext constraintValidatorContext) {
        Object passwordValue = new BeanWrapperImpl(value).getPropertyValue(password);
        Object confirmPasswordValue = new BeanWrapperImpl(value).getPropertyValue(confirmPassword);
        if (passwordValue != null) {
            return passwordValue.equals(confirmPasswordValue);
        } else {
            return confirmPasswordValue == null;
        }
    }
}

Phone Number Validator

Check for valid phone number.

package com.techgeeknext.validator;

import javax.validation.ConstraintValidator;
import javax.validation.ConstraintValidatorContext;

public class PhoneNumberValidator implements ConstraintValidator<PhoneNumber, String> {
    @Override
    public boolean isValid(String phoneNumber, ConstraintValidatorContext constraintValidatorContext) {
        return phoneNumber != null &&
                phoneNumber.matches("[0-9]+") &&
                phoneNumber.length() > 8 &&
                phoneNumber.length() < 14;
    }
}

Applying Validation Annotation

Now we will apply annotation for password + confirmation password at class level, phone number and for email validation at field level.

package com.techgeeknext.entity;

import com.techgeeknext.validator.ValidEmail;
import com.techgeeknext.validator.PasswordConfirmation;
import com.techgeeknext.validator.PhoneNumber;
import lombok.Data;

import javax.validation.constraints.NotBlank;

@Data
@PasswordConfirmation>(
        password = "password",
        confirmPassword = "confirmPassword",
        message = "Password and confirmation password must be the same!"
)

public class User {
    private String firstName;
    private String lastName;
    @PhoneNumber(message = "This phone number is not valid")
    private String phoneNumber;
    private String password;
    private String confirmPassword;
    @NotBlank
    @ValidEmail
    private String email;
}

Create RestController

Create controller to test our custom validation by passing user details to rest endpoint.

We must ensure that our Model class has been annotated with the @Valid annotation.

package com.techgeeknext.controller;

import com.techgeeknext.entity.User;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;

import javax.validation.Valid;

@Controller
public class UserController {

    @PostMapping("/add/user")
    public ResponseEntity<String> validateObject(@RequestBody @Valid User user) {
        return new ResponseEntity<>("Valid User!", HttpStatus.OK);
    }
}

Test Custom Annotation

1. Start the Spring Boot Application by running spring-boot:run or by running main class.

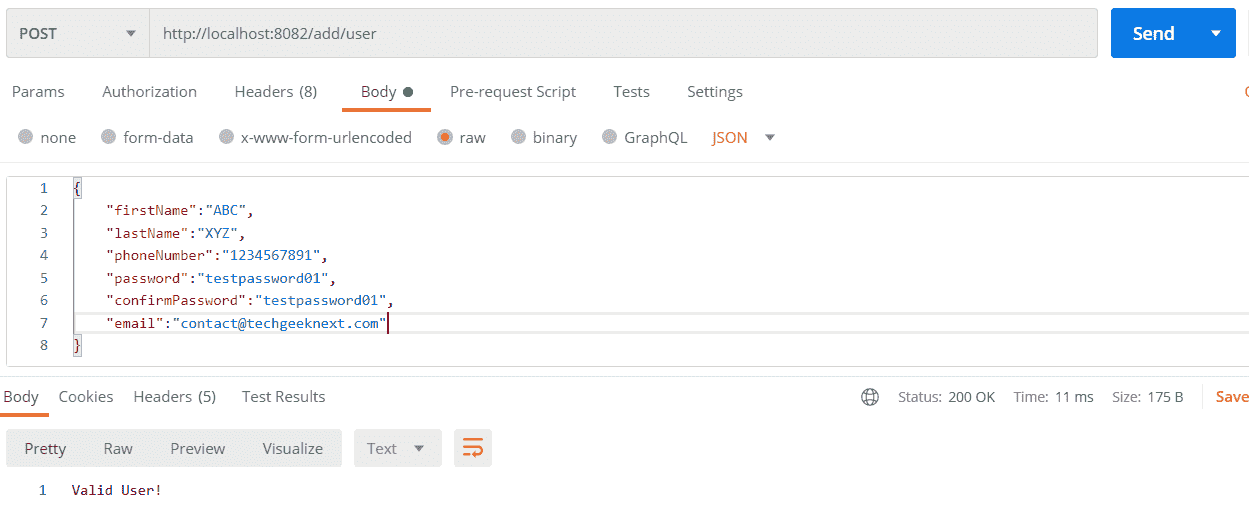

2. Valid User Details: Provide valid User details in rest endpoint http://localhost:8082/add/user.

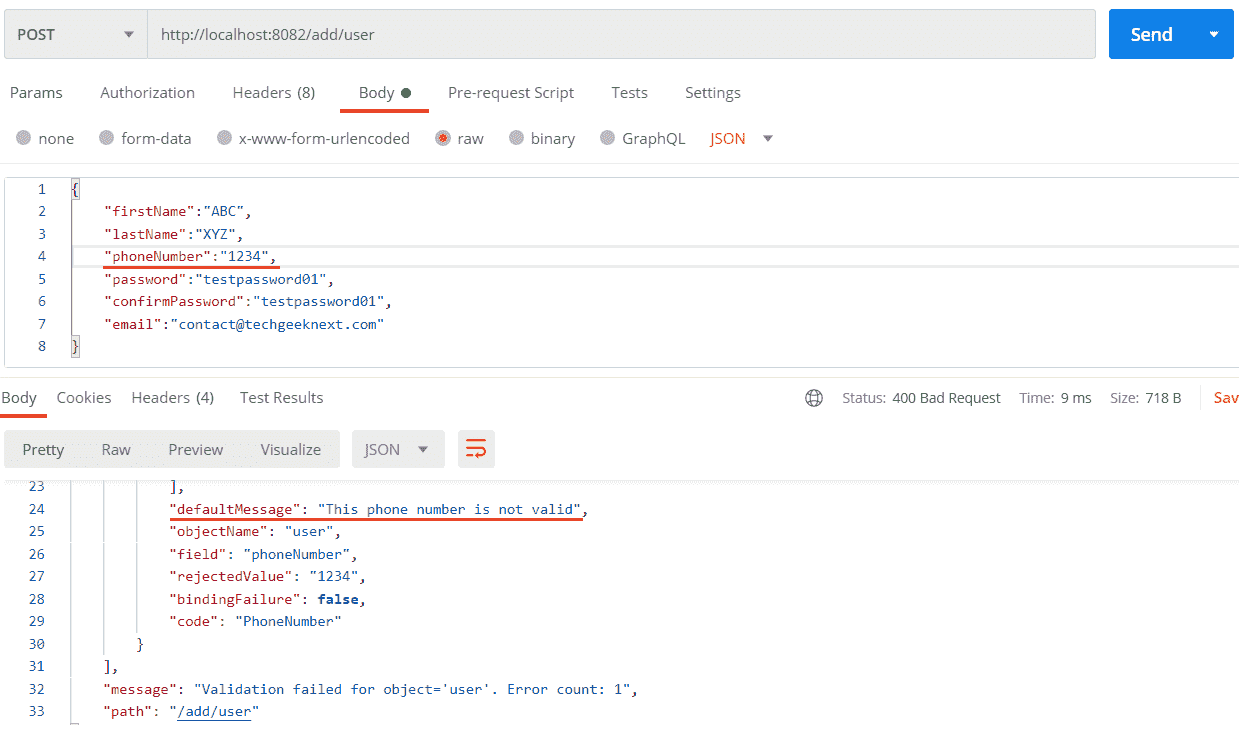

3. Phone Number Validation: Provide User details with incorrect phone number in rest endpoint http://localhost:8082/add/user.

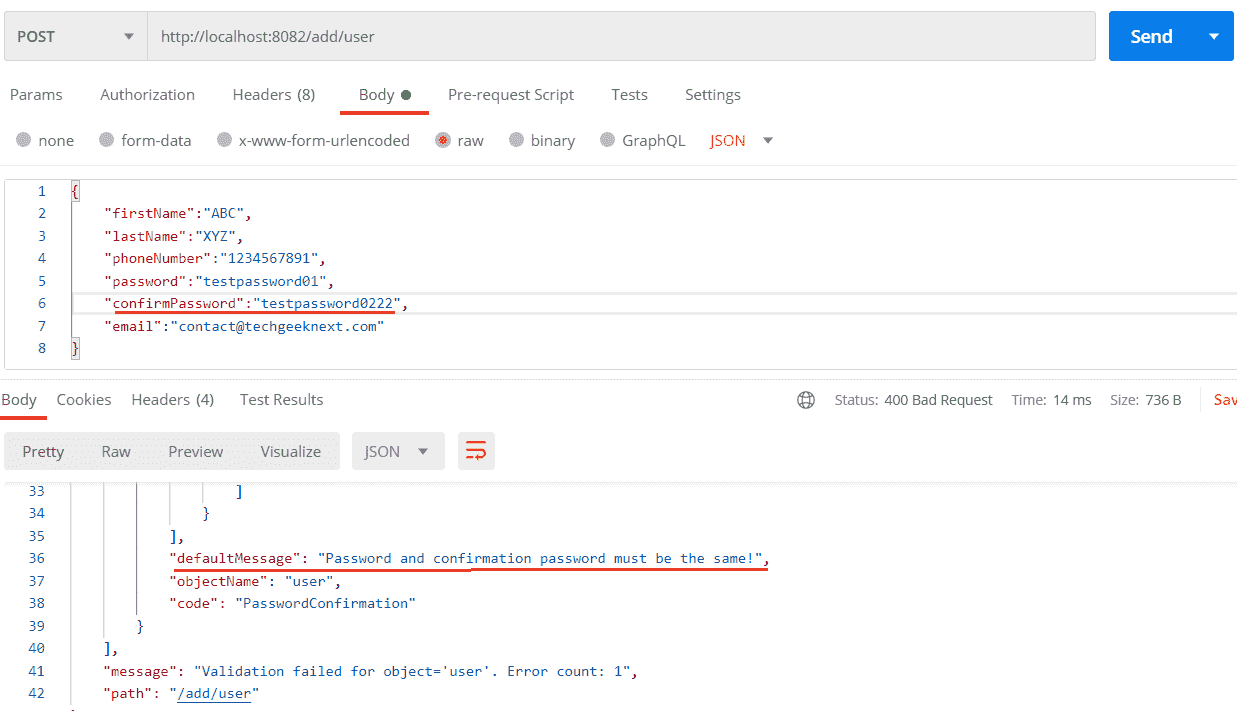

4. Password Validation: Provide User details with mismatch password and confirm password in rest endpoint http://localhost:8082/add/user.

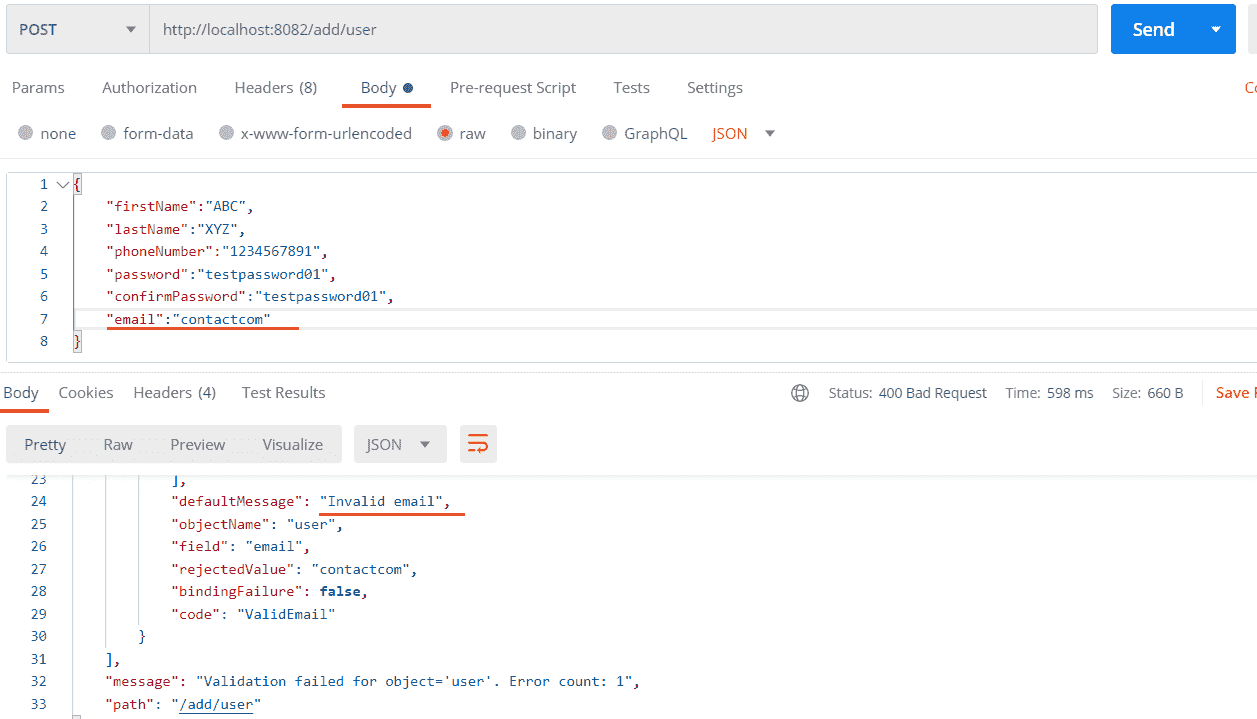

5. Email Validation: Provide User details with incorrect email id in rest endpoint http://localhost:8082/add/user.

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot + Field Level Custom Annotation Example
