Spring Boot Audit Logging Example (2024)

In this tutorial, we'll look at how to set up Spring Boot JPA to automatically store auditing information for each entity, such as created by, created date, modified by, and modified date.

Spring Boot JPA Audit Logging Example

Spring Data helps you keep track of who created or modified an entity, as well as when it happened. To leverage this auditing functionality, you must provide auditing metadata to your entity classes, which can be defined using annotations or by implementing an interface.

Now create Spring Boot application from Spring Initializr.

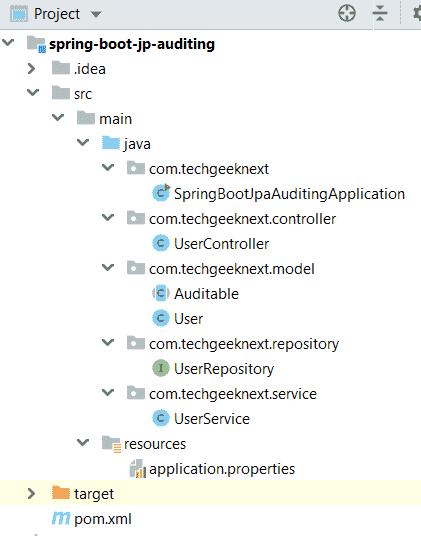

Project Structure

Maven Dependency

Add spring-boot-starter-web for RestController and spring-boot-starter-data-jpafor jpa starter.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.techgeeknext</groupId>
	<artifactId>spring-boot-jp-auditing</artifactId>
	<version>1.0.0</version>
	<packaging>jar</packaging>

	<name>spring-boot-jp-auditing</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.2.4.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>

		<dependency>
			<groupId>com.h2database</groupId>
			<artifactId>h2</artifactId>
			<scope>runtime</scope>
		</dependency>

		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.18.4</version>
			<scope>provided</scope>
		</dependency>

	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

Define Database Properties

We will use in memory h2 database.

spring.datasource.username=sa
spring.datasource.password=
spring.datasource.url=jdbc:h2:mem:audittestdb
spring.datasource.driverClassName=org.h2.Driver

spring.jpa.database-platform=org.hibernate.dialect.H2Dialect
spring.jpa.hibernate.ddl-auto=create-drop
spring.jpa.properties.hibernate.show_sql=true

spring.h2.console.enabled=true
spring.h2.console.path=/h2-console

Spring JPA Auditing

There should be an entity class that corresponds to the database record table. It is preferable to maintain audit-related fields in a separate class, which can then be extended by entities that require audit information. Other entities can then use the super class as well.

So the Auditable class that's marked as @MappedSuperclass. There is no separate table for a mapped superclass. Its mapping data is applied to entities that inherit from it.

AuditingEntityListener is an entity listener provided by Spring Data JPA that can be used to trigger the collection of auditing data. The AuditingEntityListener class contains @PrePersist and @PreUpdate annotations on callback methods that are triggered for the persist and update events, respectively.

The @EntityListeners annotation can be used to activate the AuditingEntityListener for each entity. With the @EntityListeners annotation, you can also define your own custom listener class.

package com.techgeeknext.model;

import lombok.Data;
import lombok.EqualsAndHashCode;
import lombok.ToString;
import org.springframework.data.annotation.CreatedBy;
import org.springframework.data.annotation.CreatedDate;
import org.springframework.data.annotation.LastModifiedBy;
import org.springframework.data.annotation.LastModifiedDate;
import org.springframework.data.jpa.domain.support.AuditingEntityListener;

import javax.persistence.Column;
import javax.persistence.EntityListeners;
import javax.persistence.MappedSuperclass;
import javax.persistence.Temporal;
import java.util.Date;

import static javax.persistence.TemporalType.TIMESTAMP;

@Data
@EqualsAndHashCode
@ToString
@MappedSuperclass
@EntityListeners(AuditingEntityListener.class)
public abstract class Auditable<T> {

	@Column(name = "created_date", updatable = false)
	@Temporal(TIMESTAMP)
	@CreatedDate
    protected Date creationDate;


	@Column(name = "lastMod_date")
	@LastModifiedDate
	@Temporal(TIMESTAMP)
	protected Date lastModifiedDate;

	@CreatedBy
	@Column(name="created_by")
	protected T createdBy;

	@LastModifiedBy
	@Column(name="modified_by")
	protected T modifiedBy;

}

1. @CreatedBy : This field is used to record who created the entity.
2. @LastModifiedBy : Used to identify who last modified the entity.
3. @CreatedDate : To record the time when the entity was created.
4. @LastModifiedDate : Used to record when an entity was last modified.

Model Class

We can create User entity class and extends Auditable class to record data about creation and modification, which is then mapped to the appropriate columns.

package com.techgeeknext.model;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.Entity;
import javax.persistence.Id;
import javax.persistence.Table;
import java.io.Serializable;

@Data
@NoArgsConstructor
@AllArgsConstructor
@Entity
@Table(name = "users")
public class User extends Auditable<String> implements Serializable {
	@Id
	private int id;

	private String name;

	private String email;
}

Enable Jpa Auditing

To enable this feature, add the @EnableJpaAuditing annotation to the top of the main class (SpringBootJpaAuditingApplication), and you're done. Instead of writing boilerplate code in every class to track/update time, simply extend the Auditable class wherever you want to capture any auditing information for any entity.

package com.techgeeknext;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.data.jpa.repository.config.EnableJpaAuditing;

@SpringBootApplication
@EnableJpaAuditing
public class SpringBootJpaAuditingApplication {

    public static void main(String[] args) {

        SpringApplication.run(SpringBootJpaAuditingApplication.class, args);
    }
}

Rest Controller

We will create the rest endpoints to test the audit log functionality.

package com.techgeeknext.controller;

import com.techgeeknext.model.User;
import com.techgeeknext.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

@RestController
public class UserController {

    @Autowired
    private UserService userService;

    @PostMapping("/add/user")
    public ResponseEntity<User> addUser(@RequestBody User user) {
        return new ResponseEntity<>(userService.saveUser(user), HttpStatus.OK);
    }

    @GetMapping("/get/{userId}")
    public ResponseEntity<User> getUserByUserId(@PathVariable(value = "userId") int userId) {
        return new ResponseEntity<>(userService.getUserByUserId(userId).get(), HttpStatus.OK);
    }
}

Test Audit Log

1. Start the Spring Boot Application by running spring-boot:run or by running main class.

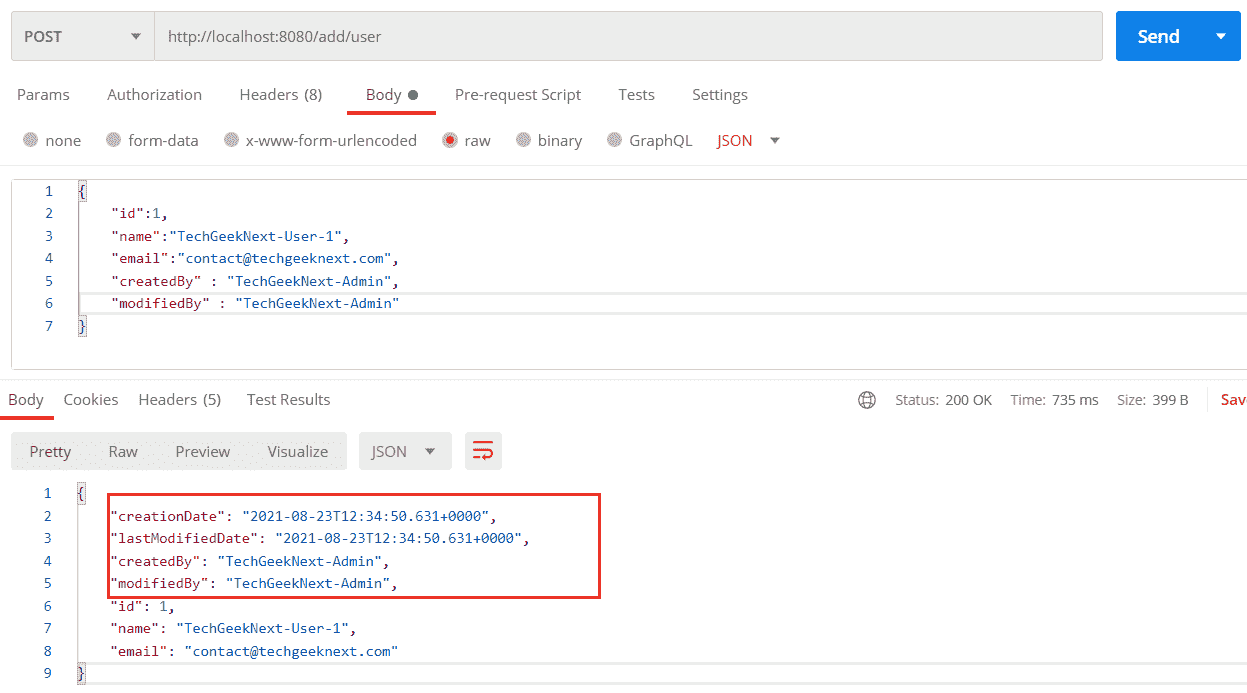

2. Use the Postman and provide User details to add the user using rest endpoint http://localhost:8080/add/user.

   As you can see that AuditingEntityListener has generated the audit information.



Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot Audit Logging Example
