Spring Boot + Flyway Migration

What is Flyway?

Flyway is an open source database migration software. It has Migrate, Clean, Info, Validate, Undo, Baseline, and Repair seven basic commands, SQL (database-specific syntax (such as PL/SQL, T-SQL, etc.) or Java migrations are supported (for advanced data transformations or dealing with LOBs).

Spring Boot integrates with Flyway, one of the most extensively used database migration tools, to make database migrations easier.

Flyway is a tool that allows you to version control incremental changes to your database such that you can easily and completely migrate to a new version.

In this tutorial, we will learn how to utilise Flyway to handle database changes in Spring Boot/Java applications, i.e using Flyway Java base migration.

We'll create a new Spring Boot project with a MySQL database and Spring Data JPA, as well as learn how to incorporate Flyway into it.

Refer example for Flyway Command Line base migration.

Now, let's create Spring Boot application from Spring Initializr.

Project Structure

Maven Dependency

Add flyway-core for flyway dependency, mysql-connector-java for mysql database.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.techgeeknext</groupId>
	<artifactId>flyway-demo</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>spring-boot-flyway-example</name>
	<description>Spring Boot Flyway</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.3.1.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>

		<dependency>
			<groupId>org.flywaydb</groupId>
			<artifactId>flyway-core</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
		<dependency>
			<groupId>javax.validation</groupId>
			<artifactId>validation-api</artifactId>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

Configuring MySQL

Provide Mysql database connection details in application.properties file.

spring.datasource.url=jdbc:mysql://localhost/techgeeknextFlywaydb?createDatabaseIfNotExist=true&autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
spring.datasource.username=root
spring.datasource.password=root
spring.datasource.platform=mysql
spring.jpa.hibernate.ddl-auto=update

Entity

Create Employee entity, so that we can our flyway database migration example.

package com.techgeeknext.entity;

import javax.persistence.*;
import javax.validation.constraints.NotBlank;
import javax.validation.constraints.Size;
import lombok.Data;

@Entity
@Table(name = "employees")
@Data
public class Employee {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @NotBlank
    @Column(unique = true)
    @Size(min = 1, max = 100)
    private String name;

    @NotBlank
    @Size(max = 50)
    private String role;

    @Size(max = 50)
    private String project;
}

JPA Repository

Create Employee repository class.

package com.techgeeknext.repository;

import com.techgeeknext.entity.Employee;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface EmployeeRepository extends JpaRepository<Employee, Long> {
}

Flyway Migration script

By default, Flyway attempts to read database migration scripts from the db/migration folder.

- V[VERSION_NUMBER__[NAME].sql is a naming standard that must be followed by all migration scripts. To understand more about the naming convention, refer the Official Flyway Documentation.

Create Employee Table Schema

Now, inside the src/main/resources/db/migration directory, create a new file named V1__init.sql and add the following sql scripts:

CREATE TABLE employees (
  id bigint(20) NOT NULL AUTO_INCREMENT,
  name varchar(100) NOT NULL,
  role varchar(50) NOT NULL,
  project varchar(50) DEFAULT NULL,
  PRIMARY KEY (id),
  UNIQUE KEY UK_name (name)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

Test Flyway Migration

Run the Spring Boot application using mvn spring-boot:run .

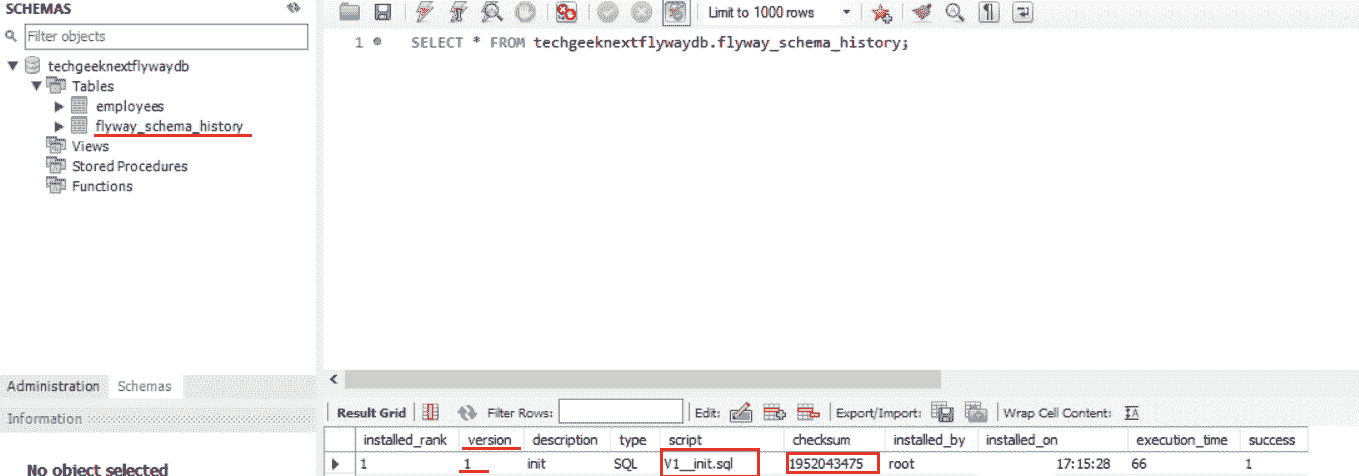

When the application starts, you'll notice two tables created in Mysql database: one for employees and another for the fly database named flyway_schema_history.

In the table, it keeps track of the current migration's version, script file name, and checksum, among other things.

If you make changes to V1__init.sql after the migration is complete, Flyway will complain that the checksums don't match.

As a result, any modifications to the schema must be made in a new migration script file with a new version V2__[NAME].sql, which Flyway will apply when you start the application.

Test adding more migration script

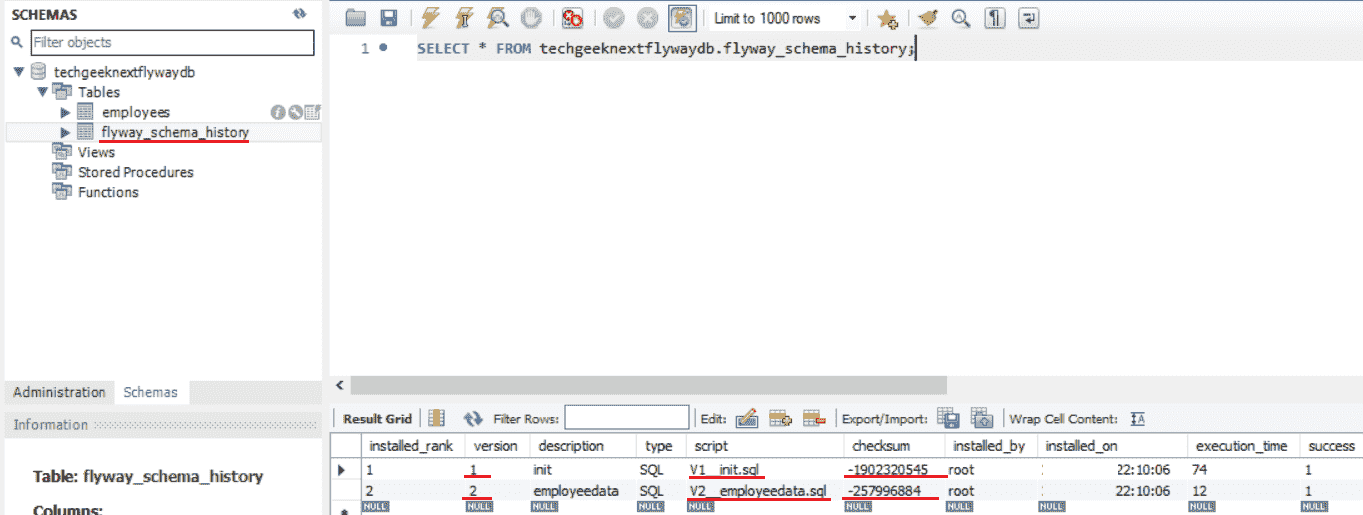

Create a new version2 migration script V2__employeedata.sql under same package db/migration to watch how Flyway automatically migrates the database to the new version.

INSERT INTO employees(name, role, project) VALUES('techgeeknext-user1', 'Developer', 'Flyway-Project1');
INSERT INTO employees(name, role, project) VALUES('techgeeknext-user2', 'SME', 'Flyway-Project2');

Liquibase is another popular Flyway alternative.

Differences between Flyway and Liquibase

Refer Differences between Flyway and Liquibase to understand more.

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot + Flyway Migration Example

You learnt how to use Flyway to version database changes in a Spring Boot application in this post.
