Spring Boot Swagger 3 Security Example (2024)

In previous tutorial we have developed Spring Boot Swagger 3 Example and Spring Boot + Swagger 2 Example

In this tutorial, we'll show you how to use Spring Boot Swagger 3 + Basic Security Example.

What is Swagger?

Swagger is a JSON-based interface description language for specifying RESTful APIs for microservices/spring boot applications. To design, construct, describe, and consume RESTful web services, Swagger is used in conjunction with a set of open-source software tools. Automated documentation, code generation, and test-case generation are all included in Swagger.

What is OpenAPI?

The OpenAPI Specification (previously known as the Swagger Specification) is a machine-readable interface file specification for describing, generating, consuming, and visualising RESTful web services.

OpenAPI 3.0 is the latest version of the OpenAPI Specification, an open-source format for describing and documenting APIs.

Swagger vs OpenAPI

In short:

• OpenAPI = Specification
• Swagger = Tools for implementing the specification

Let's create Spring Boot Project from Spring Initializer site https://start.spring.io/

Project Structure

Maven Dependency

We simply add the springdoc-openapi-ui dependency to our pom.xml to have springdoc-openapi automatically build the OpenAPI 3 specification documents for our API and spring-boot-starter-security for security.

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.techgeeknext</groupId>
  <artifactId>spring-boot-swagger3-security</artifactId>
  <version>0.0.1-SNAPSHOT</version>


  <parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.2.8.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<!-- Swagger UI -->
		<dependency>
			<groupId>org.springdoc</groupId>
			<artifactId>springdoc-openapi-ui</artifactId>
			<version>1.5.9</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-security</artifactId>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>
</project>

Rest Controller

Create controller class to test swagger documentation using rest endpoint.

package com.techgeeknext.controller;

import com.techgeeknext.model.User;
import io.swagger.v3.oas.annotations.security.SecurityRequirement;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.ArrayList;
import java.util.List;
import java.util.stream.Collectors;

@RestController
@SecurityRequirement(name = "techgeeknext-api")
public class UserController {

	List<User> users = new ArrayList<User>();
	{
		users.add(new User(1,"TechGeekNext-User1", "ADMIN", "user1@test.com"));
		users.add(new User(2,"TechGeekNext-User2", "SUPERVISOR", "user2@test.com"));
		users.add(new User(3,"TechGeekNext-User3", "USER", "user3@test.com"));
		users.add(new User(4,"TechGeekNext-User4", "USER", "user4@test.com"));
	}


	@RequestMapping(value = "/getUsers")
	public List<User> getUsers() {
		return users;
	}

	@RequestMapping(value = "/getUser/{id}")
	public User getUserById(@PathVariable(value = "id") int id) {
		return users.stream().filter(x -> x.getId()==(id)).collect(Collectors.toList()).get(0);
	}

	@RequestMapping(value = "/getUser/role/{role}")
	public List<User> getUserByRole(@PathVariable(value = "role") String role) {
		return users.stream().filter(x -> x.getRole().equalsIgnoreCase(role))
				.collect(Collectors.toList());
	}
}

Model Object

Create a User class.

package com.techgeeknext.model;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
@Builder
public class User {
	private int id;
	private String name;
	private String role;
	private String email;
}

Security Configuration

1. To apply the SecurityConfiguration class to the global WebSecurity, we annotate it with @EnableWebSecurity.
2. We also extend WebSecurityConfigurerAdapter, which gives us with configuration methods for specifying which URIs to protect or pass through.
3. Extending WebSecurityConfiguration enables Spring security to be customised by using overriding methods.

package com.techgeeknext.configuration;

import org.springframework.context.annotation.Bean;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;

@EnableWebSecurity
public class SecurityConfiguration extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .antMatchers("/swagger-ui*/**", "/techgeeknext-openapi/**").permitAll()
                .anyRequest().authenticated()
                .and()
                .httpBasic();
    }

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication()
                .withUser("techgeeknext")
                .password(passwordEncoder().encode("techgeeknext"))
                .authorities("ADMIN");
    }

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }
}

Configure Swagger for Spring Security

SecurityScheme: For authentication and authorization schemes, OpenAPI refers to them as security schemes. OpenAPI 3.0 allows you to specify APIs that are secured by the following security schemes.

• HTTP authentication schemes (they use the Authorization header):
• Basic
• Bearer
• other HTTP schemes as defined by RFC 7235 and HTTP Authentication Scheme Registry
• API keys in headers, query string or cookies
• Cookie authentication
• OAuth 2
• OpenID Connect Discovery

In the SpringBootSwagger3SecurityApplication class, define SecurityScheme.

package com.techgeeknext;

import io.swagger.v3.oas.annotations.OpenAPIDefinition;
import io.swagger.v3.oas.annotations.enums.SecuritySchemeIn;
import io.swagger.v3.oas.annotations.enums.SecuritySchemeType;
import io.swagger.v3.oas.annotations.info.Info;
import io.swagger.v3.oas.annotations.security.SecurityScheme;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@SecurityScheme(name = "techgeeknext-api", scheme = "basic", type = SecuritySchemeType.HTTP, in = SecuritySchemeIn.HEADER)
@OpenAPIDefinition(info = @Info(title = "User API", version = "2.0", description = "User Details"))
public class SpringBootSwagger3SecurityApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringBootSwagger3SecurityApplication.class, args);
	}

}

Swagger3 UI Docs

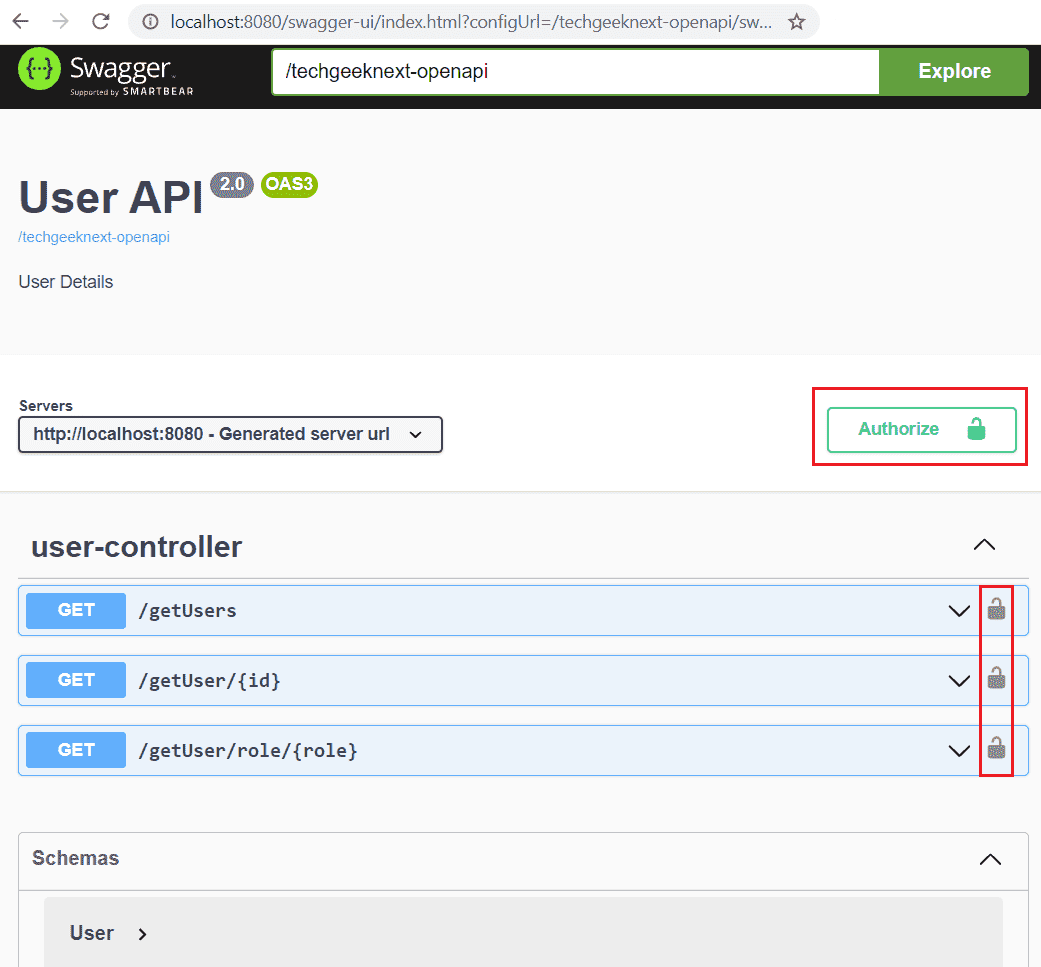

1. Open http://localhost:8080/swagger-ui.html in browser to view the Swagger UI documentation.

   You can notice the "open lock icon", because we have not done Authorization yet. Click on Authorize button.

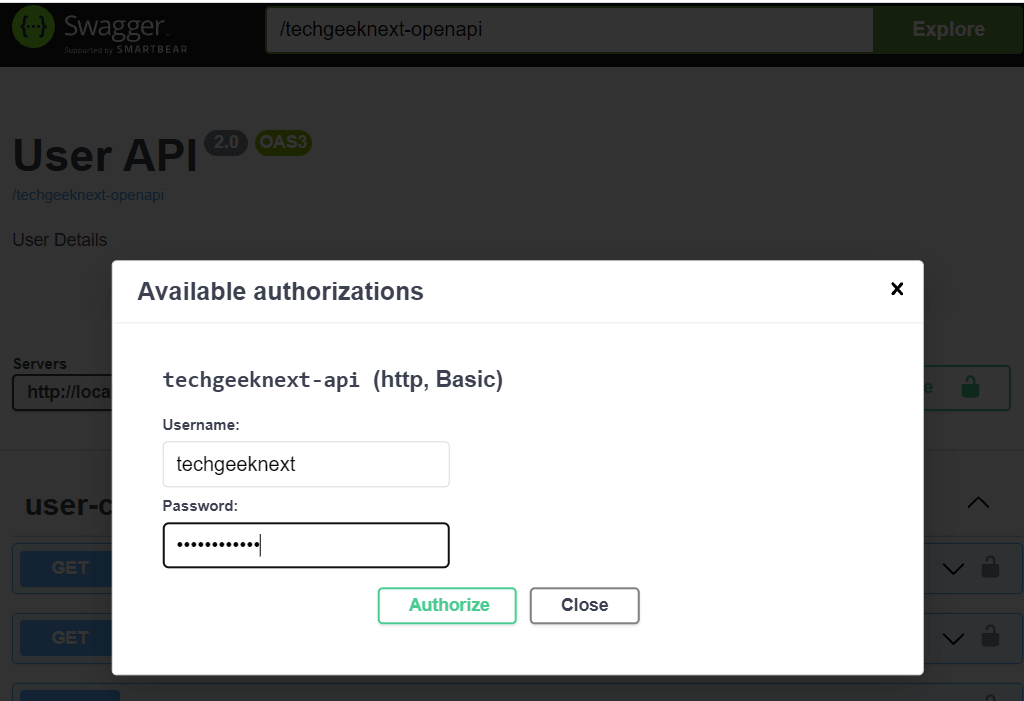

2. Provide username (techgeeknext) and password (techgeeknext), and click on Authorize button.

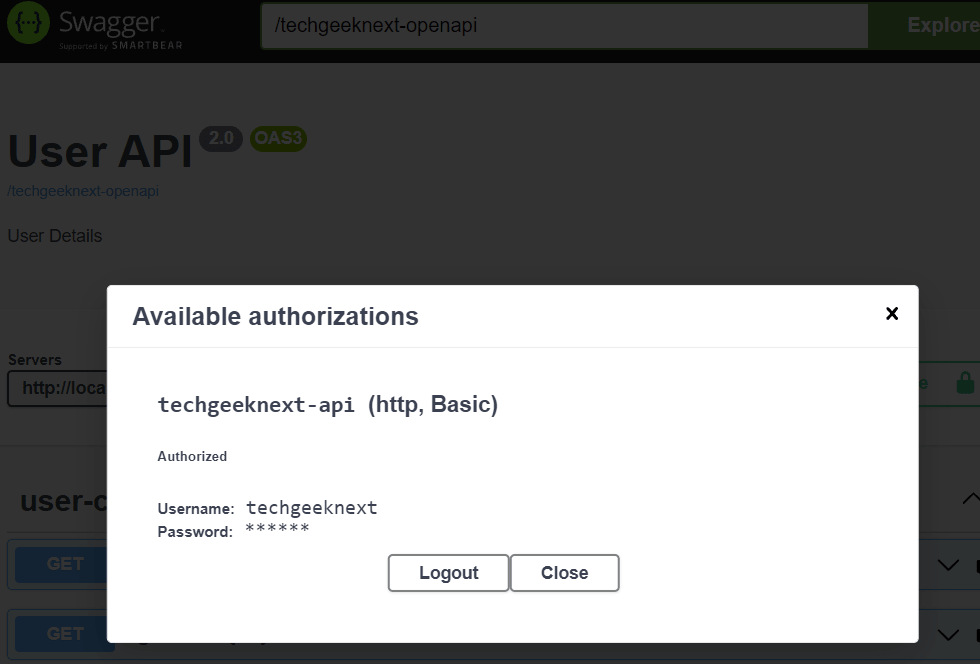

3. You can see Authorization is done and we can also perform logout if needed.

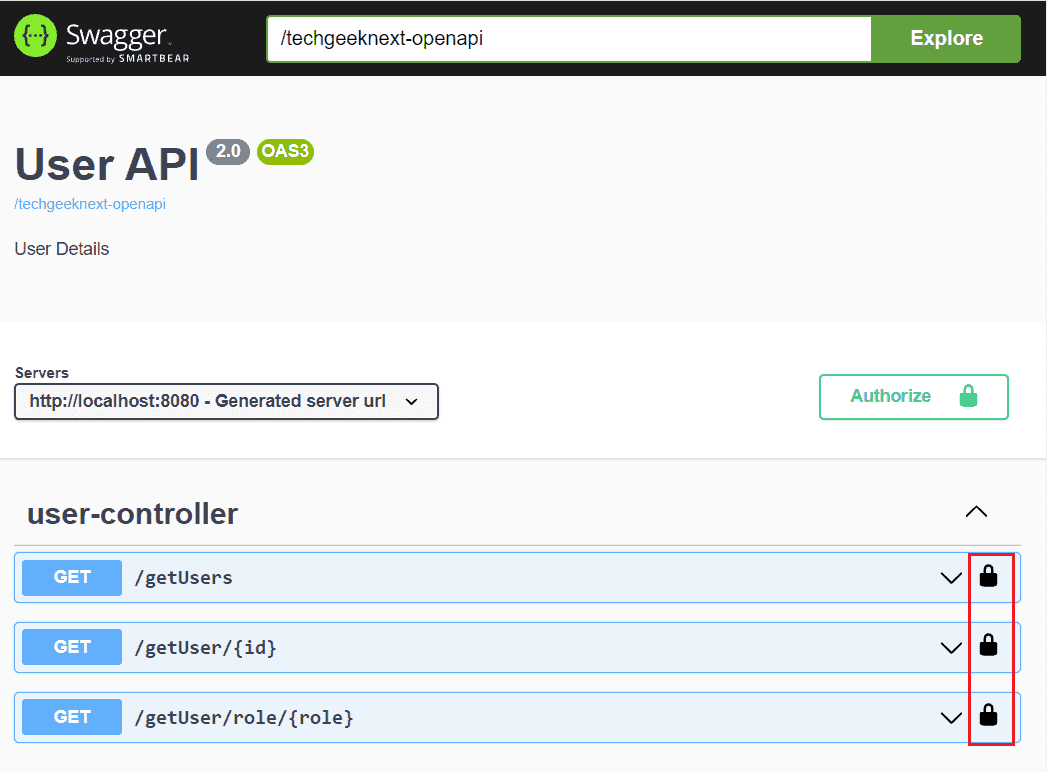

4. Once Authorization is done, we can see the "close lock icon".

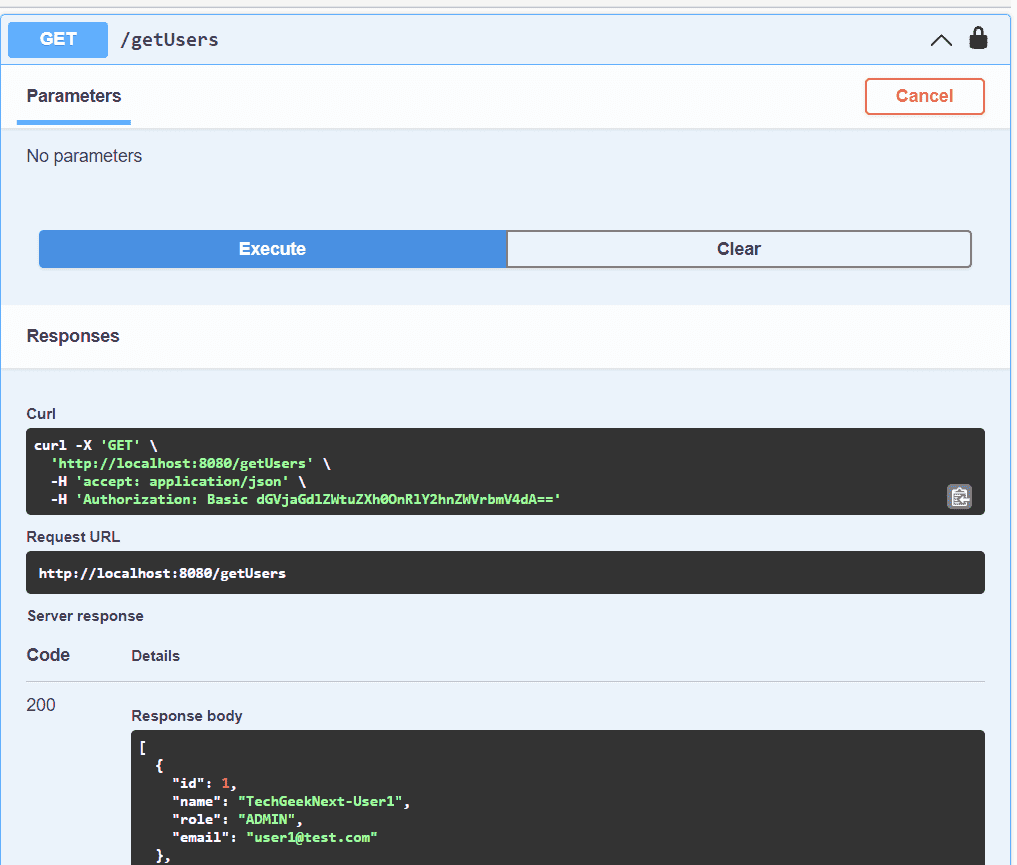

5. And now we can access any rest end point to get the response as below:

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot Swagger 3 Security Example
