Spring Boot WebFlux + MongoDB Crud Example

Overview

In this tutorial we will be looking at creating example using Spring Boot WebFlux + MongoDB Crud.

In this article will create the example which will support fully non-blocking, also using mongodb as back-end database to utilise reactive programming completely.

Follow steps from MongoDB Installation on Windows.

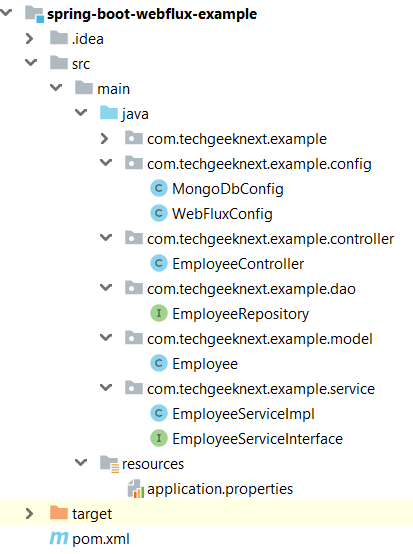

Project Structure

Maven Dependency

Add spring-boot-starter-webflux and spring-boot-starter-data-mongodb-reactive dependencies.

<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.1.RELEASE</version>
        <relativePath /> <!-- lookup parent from repository -->
    </parent>

    <groupId>com.techgeeknext</groupId>
    <artifactId>spring-boot-webflux-example</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>spring-boot-webflux-example</name>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-webflux</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-mongodb-reactive</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
            <version>2.3.0</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>

</project>

Application Properties

## MongoDB default port
dbport=27017

##MongoDB database name
dbname=TechGeekNextDB

Webflux Configuration

package com.techgeeknext.example.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.reactive.config.EnableWebFlux;
import org.springframework.web.reactive.config.WebFluxConfigurer;

@Configuration
@EnableWebFlux
public class WebFluxConfig implements WebFluxConfigurer
{
}

MongoDB Configuration

package com.techgeeknext.example.config;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.mongodb.config.AbstractReactiveMongoConfiguration;
import org.springframework.data.mongodb.core.ReactiveMongoTemplate;
import org.springframework.data.mongodb.repository.config.EnableReactiveMongoRepositories;

import com.mongodb.reactivestreams.client.MongoClient;
import com.mongodb.reactivestreams.client.MongoClients;

@Configuration
@EnableReactiveMongoRepositories(basePackages = "com.techgeeknext.example.dao")
public class MongoDbConfig extends AbstractReactiveMongoConfiguration
{
    @Value("${dbport}")
    private String port;

    @Value("${dbname}")
    private String dbName;

    @Override
    public MongoClient reactiveMongoClient() {
        return MongoClients.create();
    }

    @Override
    protected String getDatabaseName() {
        return dbName;
    }

    @Bean
    public ReactiveMongoTemplate reactiveMongoTemplate() {
        return new ReactiveMongoTemplate(reactiveMongoClient(), getDatabaseName());
    }
}

Model Class

Create Employee Model Class.

package com.techgeeknext.example.model;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.context.annotation.Scope;
import org.springframework.context.annotation.ScopedProxyMode;
import org.springframework.data.annotation.Id;
import org.springframework.data.mongodb.core.mapping.Document;

@Data
@AllArgsConstructor
@NoArgsConstructor
@Builder
@Scope(scopeName = "request", proxyMode = ScopedProxyMode.TARGET_CLASS)
@Document
public class Employee {
    @Id
    int id;
    String name;
    String role;
}

REST Controller

package com.techgeeknext.example.controller;

import com.techgeeknext.example.model.Employee;
import com.techgeeknext.example.service.EmployeeServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

@RestController
public class EmployeeController {
    @Autowired
    private EmployeeServiceImpl employeeServiceImpl;

    @PostMapping("/create/emp")
    @ResponseStatus(HttpStatus.CREATED)
    public void createEmp(@RequestBody Employee employee) {
        employeeServiceImpl.createEmp(employee);
    }

    @GetMapping(value = "/get/all", produces = MediaType.TEXT_EVENT_STREAM_VALUE)
    @ResponseBody
    public Flux<Employee> findAll() {
        return employeeServiceImpl.findAllEmp();
    }

    @GetMapping("/get/{id}")
    public ResponseEntity<Mono<Employee>> findEmpById(@PathVariable("id") Integer id) {
        Mono<Employee> employee = employeeServiceImpl.findByEmpId(id);
        return new ResponseEntity<Mono<Employee>>(employee, employee != null ? HttpStatus.OK : HttpStatus.NOT_FOUND);
    }

    @PutMapping("/update/emp")
    @ResponseStatus(HttpStatus.OK)
    public Mono<Employee> update(@RequestBody Employee employee) {
        return employeeServiceImpl.updateEmp(employee);
    }

    @DeleteMapping("/delete/{id}")
    @ResponseStatus(HttpStatus.OK)
    public void delete(@PathVariable("id") Integer id) {
        employeeServiceImpl.deleteEmp(id).subscribe();
    }

}

Service classes Implementation

package com.techgeeknext.example.service;

import com.techgeeknext.example.dao.EmployeeRepository;
import com.techgeeknext.example.model.Employee;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

@Service
public class EmployeeServiceImpl implements EmployeeServiceInterface {

    @Autowired
    EmployeeRepository employeeRepo;

    public void createEmp(Employee employee) {
        employeeRepo.save(employee).subscribe();
    }

    public Mono<Employee> findByEmpId(Integer id) {
        return employeeRepo.findById(id);
    }

    public Flux<Employee> findAllEmp() {
        return employeeRepo.findAll();
    }

    public Mono<Employee> updateEmp(Employee employee) {
        return employeeRepo.save(employee);
    }

    public Mono<Void> deleteEmp(Integer id) {
        return employeeRepo.deleteById(id);
    }
}

Test

Run the application and follow the below steps to test the application response.

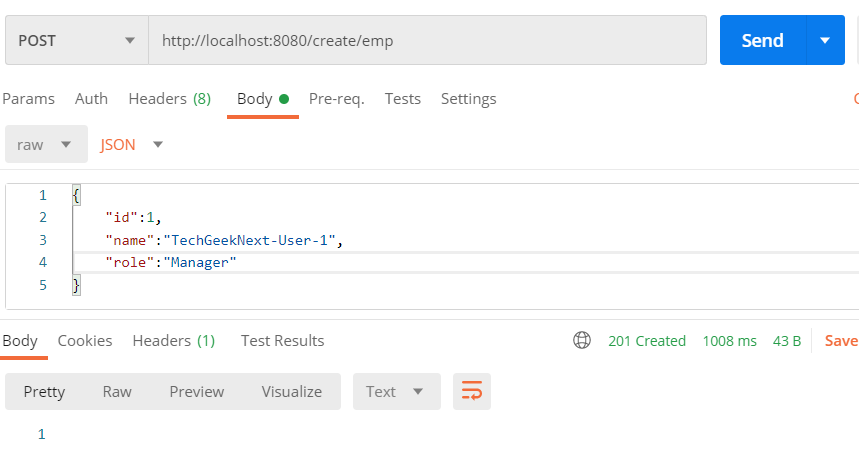

1. Create the Employees data, use HTTP POST http://localhost:8080/create/emp

2. Once, created few employees, you can GET all employees using HTTP GET http://localhost:8080/get/all

3. To delete the employee, use HTTP DELETE http://localhost:8080/delete/2
4. To update the employee, use HTTP PUT http://localhost:8080/update/emp and provide Employee details to update

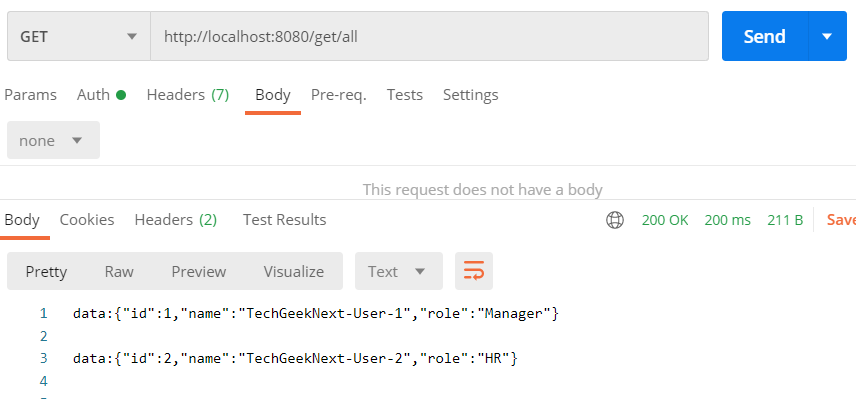

NOTE: Postman chrome browser extension is a blocking client, because it will only show the result for get all employees (http://localhost:8080/get/all) after it has collected all the result set of employees from database.

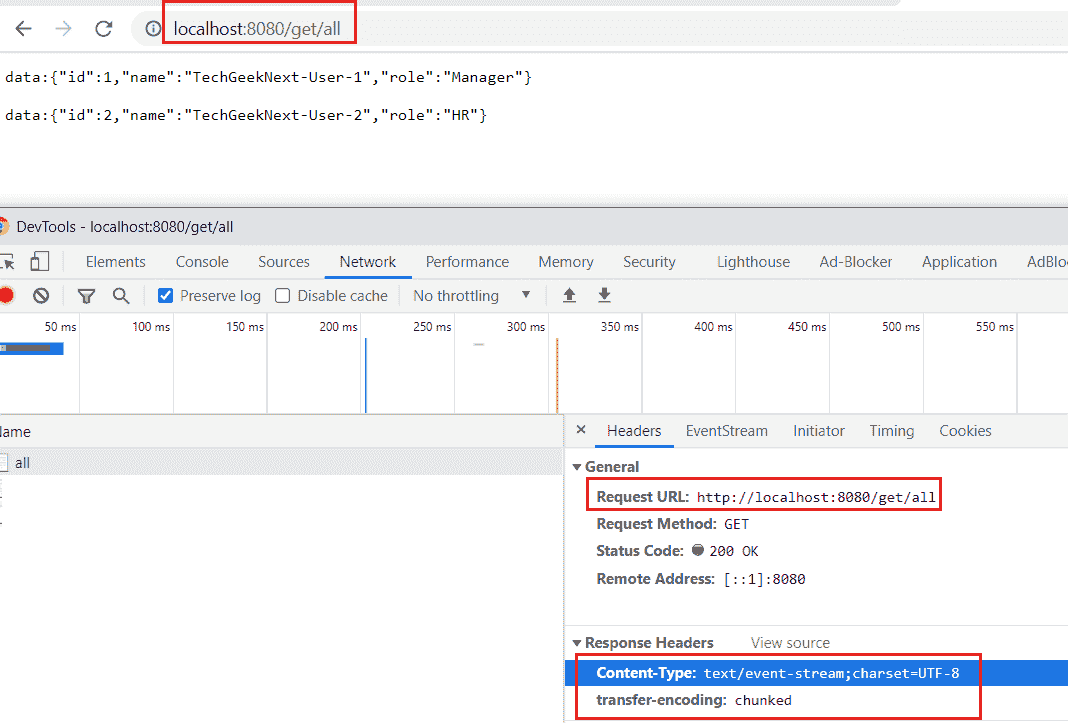

Testing non-blocking response : Open the URL in the Chrome browser. The result will be displayed one after another as they become available in the form of events (text/event-stream).

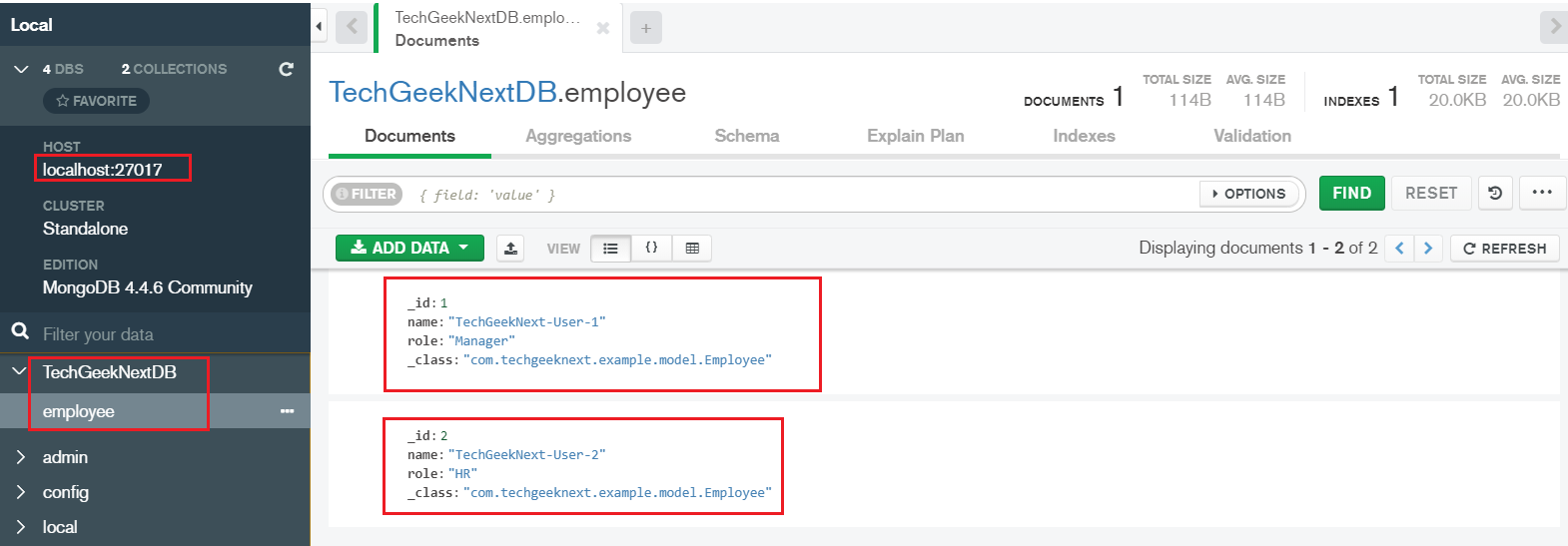

Also, you can see the output in MongoDB UI - Management Tool. You can install the MongoDB UI from here.

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot WebFlux + MongoDB Crud Example
